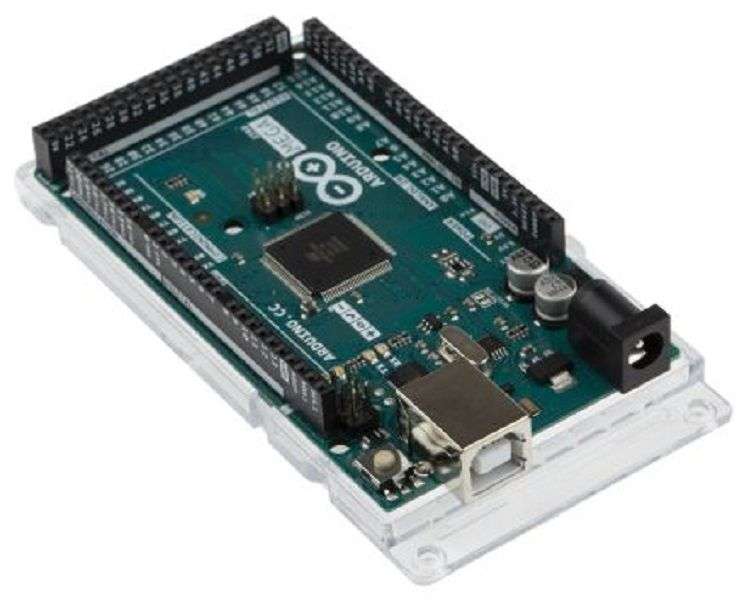

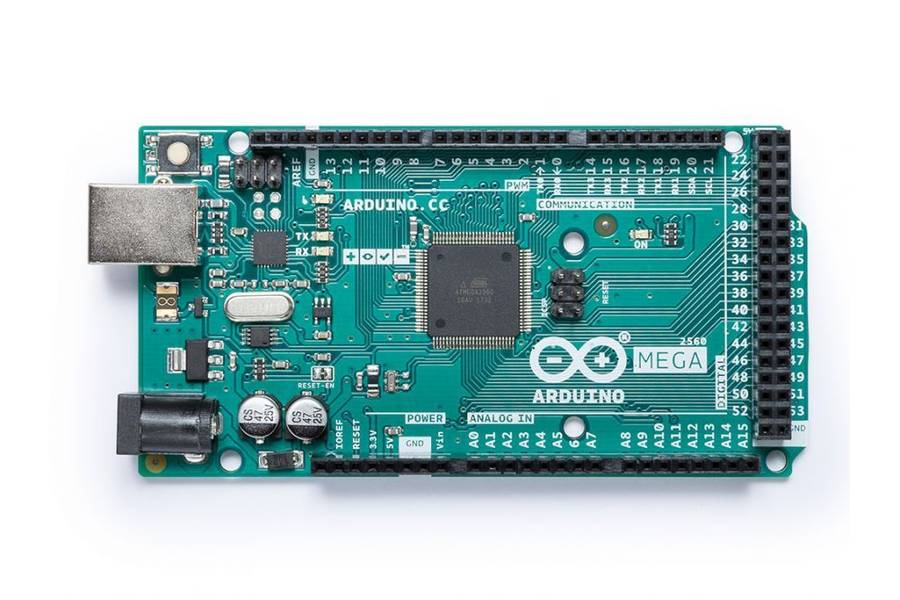

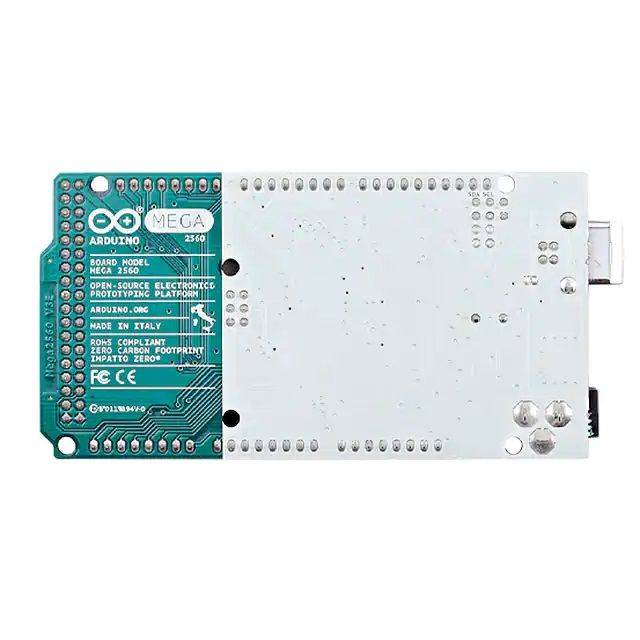

ARDUINO A000067 - Development Board

The A000067 is an Arduino Mega2560 Rev3 development board based on ATmega2560microcontroller. The board has 54 digital input/output pins (of which 14 can beused as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16MHzcrystal oscillator, a USB connection, a power jack, an ICSP header, and a resetbutton. It contains everything needed to support the microcontroller, simplyconnect it to a computer with a USB cable or power it with an AC to DC adaptoror battery to get started. The Mega is compatible with most shields designed forthe Arduino Uno, Duemilanove or Diecimila. The Arduino Mega can be powered viathe USB connection or with an external power supply. The power source isselected automatically. The Arduino Mega2560 has a number of facilities forcommunicating with a computer, another Arduino or other microcontrollers.Silicon Manufacturer: AtmelNo. of Bits: 8bitSilicon Family Name: ATmegaCore Architecture: AVRCore Sub-Architecture: megaAVRSilicon Core Number: ATmega2560Kit Contents: Development Board for ATmega2560ATmega16U2 instead 8U2 as USB to serial converter1.0 pinoutStronger RESET circuit5V operating voltageInput voltage (recommended) range from 7V to 12VInput voltage (limit) range from 6V to 20V40mA DC current per I/O pin256KB flash memory of which 8KB used by bootloader8KB SRAM4KB EEPROMApplicationsEmbedded Design & Development, Industrial, Communications & Networking, Sensing& Instrumentation, Automation & Process ControlWarningsThe recommended range is 7V to 12V, if using more than 12V, the voltageregulator may overheat and damage the board.
