Arduino A000073 Development Board, Arduino Uno SMD, ATmega328 MCU

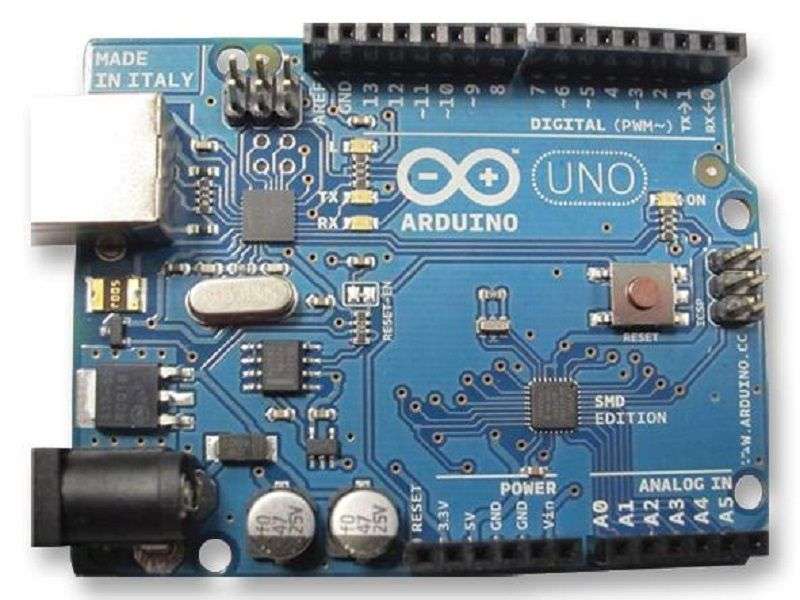

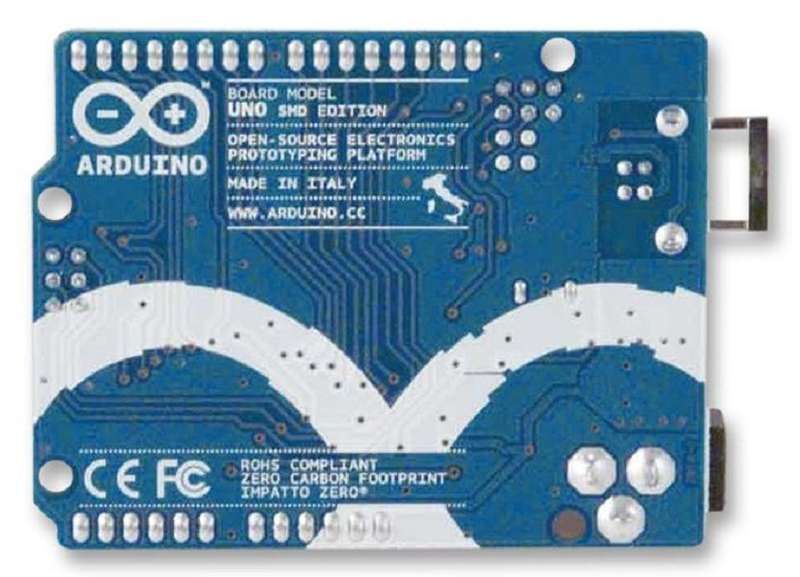

A000073 - Development Board, Arduino Uno SMD, ATmega328 MCU, 54 5V I/O, 16Analogue Inputs, UARTThe A000073 is a Arduino Uno SMD R3 development board based on the ATmega328microcontroller. The ATmega328 is a low power CMOS 8bit microcontroller based onthe AVR enhanced RISC architecture. By executing powerful instructions in asingle clock cycle, the ATmega328 achieves throughputs approaching 1MIPS per MHzallowing the system designer to optimize power consumption versus processingspeed. The Arduino Uno SMD R3 evaluation board has 14 digital input/output pins(of which 6 can be used as PWM outputs), 6 analog inputs, a 16MHz crystaloscillator, a USB connection, a power jack, an ICSP header and a reset button.It contains everything needed to support the microcontroller, simply connect itto a computer with a USB cable or power it with a AC to DC adapter or battery toget started. The Uno differs from all preceding boards in that it does not usethe FTDI USB to serial driver chip.ATmega16U2 instead 8U2 as USB to serial converterStronger RESET circuit1.0 pinoutInput voltage (recommended) range from 7V to 12V5V operating voltage32KB flash memory0.5KB flash memory for bootloader50mA of DC current for 3.3V pin1KB EEPROM2KB SRAMApplicationsEmbedded Design & Development, Building Automation, Industrial, Sensing &Instrumentation, Automation & Process ControlSilicon Manufacturer: AtmelNo. of Bits: 8bitSilicon Family Name: ATmegaCore Architecture: AVRCore Sub-Architecture: megaAVRSilicon Core Number: ATmega328
