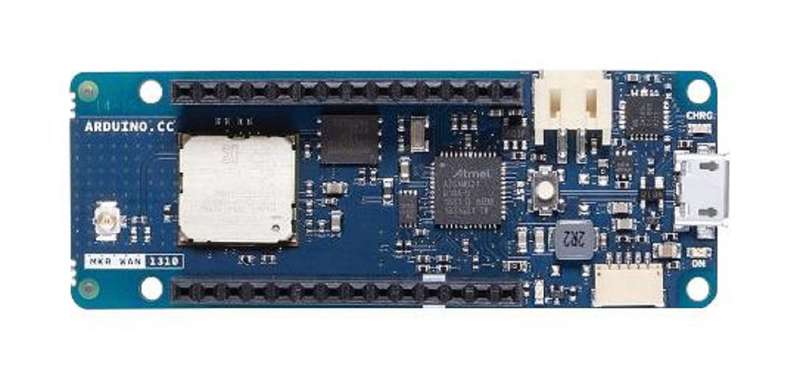

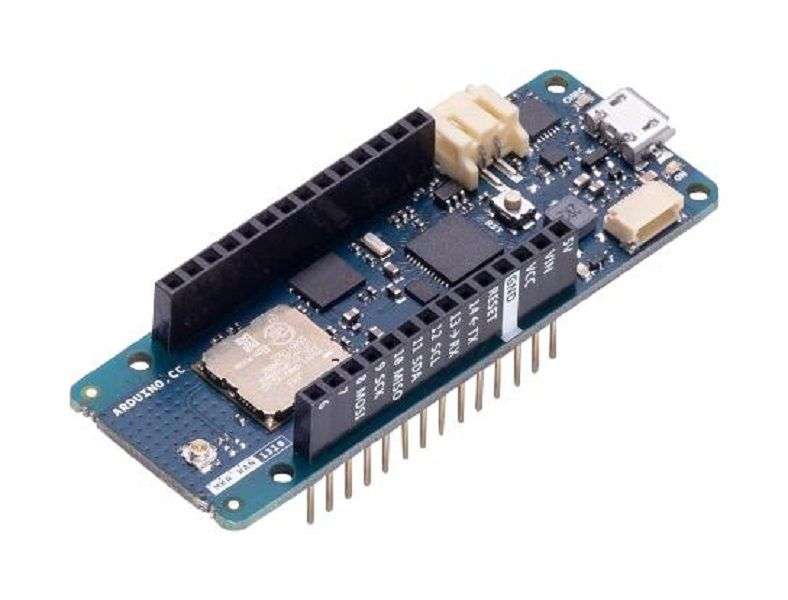

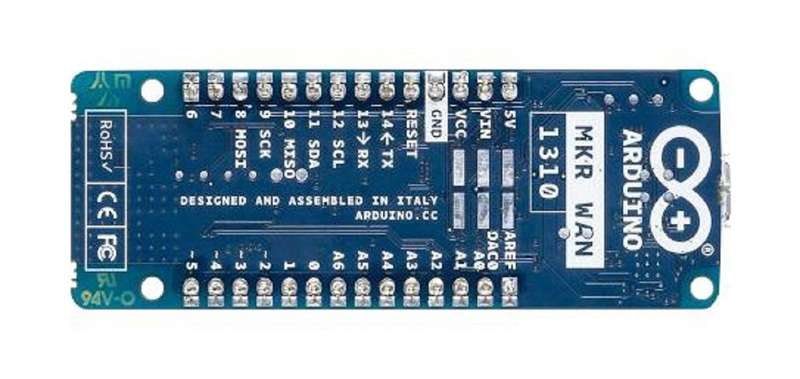

Arduino ABX00029 DEV Board, 32-BIT ARM CORTEX-M0+ MCU

The Arduino MKR WAN 1310 board provides a practical and cost effective solutionto add LoRa connectivity to projects requiring low power. This open source boardcan be connected to: Arduino Create, to your own LoRa network using the ArduinoPro Gateway for LoRa, to existing LoRaWAN infrastructure like The ThingsNetwork, or even to other boards using the direct connectivity mode.The MKR WAN 1310, brings in a series of improvements when compared to itspredecessor, the MKR WAN 1300. While still based on the Atmel SAMD21 low powerprocessor, the Murata CMWX1ZZABZ LoRa module, and the MKR family'scharacteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new batterycharger, a 2MByte SPI Flash, and improved control of the board's powerconsumption.The latest low power architecture has considerably improved the battery life onthe MKR WAN 1310. When properly configured, the power consumption is now as lowas 104uA! It is also possible to use the USB port to supply power (5V) to theboard; run the board with or without batteries - the choice is yours.Data logging and other OTA (Over The Air) functions are now possible since theinclusion of the on board 2MByte Flash. This new exciting feature will let youtransfer configuration files from the infrastructure onto the board, create yourown scripting commands, or simply store data locally to send it whenever theconnectivity is best. Whilst the MKR WAN 1310's crypto chip adds furthersecurity by storing credentials & certificates in the embedded secure element.These features make it the perfect IoT node and building block for low powerwide area IoT devices.Silicon Manufacturer: MicrochipNo. of Bits: 32bitSilicon Family Name: SAM32Core Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: ATSAMD21G18, CMWX1ZZABZ LoRa ModuleKit Contents: Dev Board MKR WAN 1310
