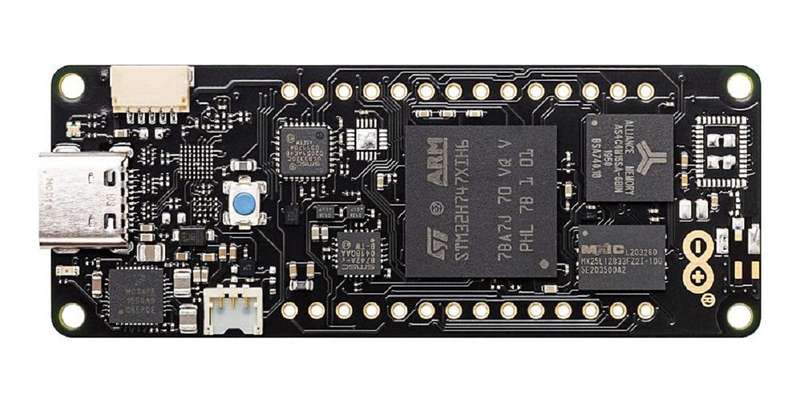

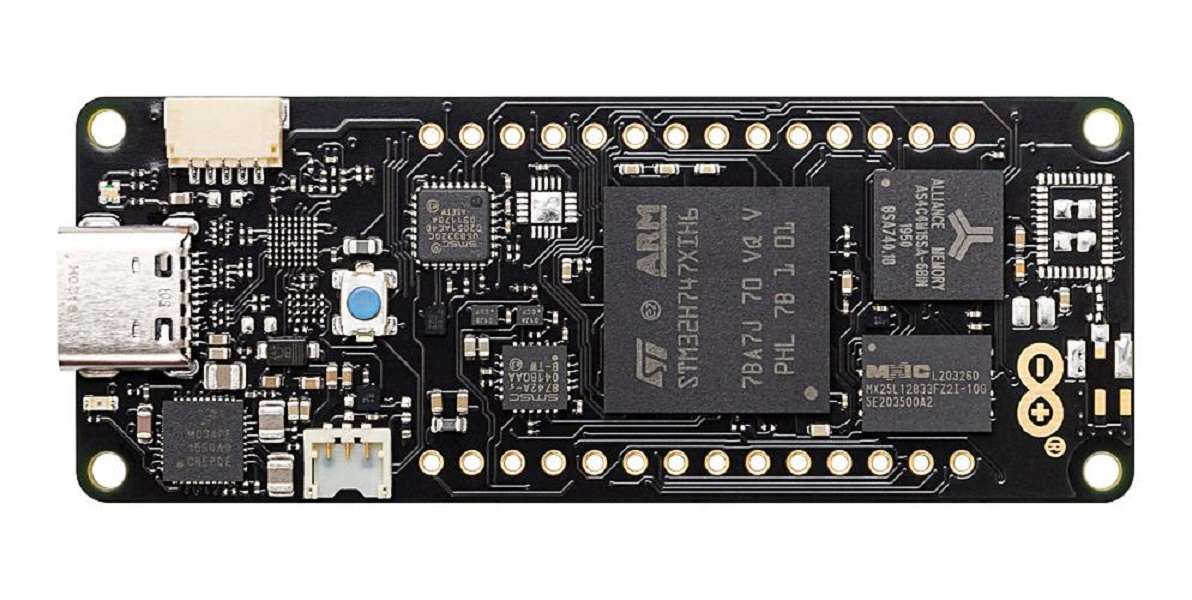

Arduino (ABX00045) Development Board, STM32H747XI

Product Information:Silicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32Core Architecture: ARMCore Sub-Architecture: Cortex-M4F, Cortex-M7FSilicon Core Number: STM32H747XIKit Contents: Portenta H7 Dev Board STM32H747XIProduct Range: -Product Overview:Portenta H7 Lite board is a cost-effective solution, designed for complexenvironments where radio communication is not suitable or possible. It isperfect for developers who want to leverage the computational power of thePortenta H7, without the need for video output or advanced security features.The Portenta H7 Lite simultaneously runs high-level code and real-time tasksthanks to its two processors. For example, it can execute Arduino-compiled andMicroPython code at the same time, and have the two cores communicate with oneanother.STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU2.95µA current consumption in standby mode (backup SRAM OFF, RTC/LSE ON)22x timers and watchdogs, 4x UART ports (2 with flow control)10/100Mbps Ethernet (through expansion port only)Two 80 pin connectors will expose all of the module's peripherals to otherdevices3 xADCs with 16-bit max. resolution (up to 36 channels, up to 3.6MSPS), 2 x12-bit DAC (1MHz)
