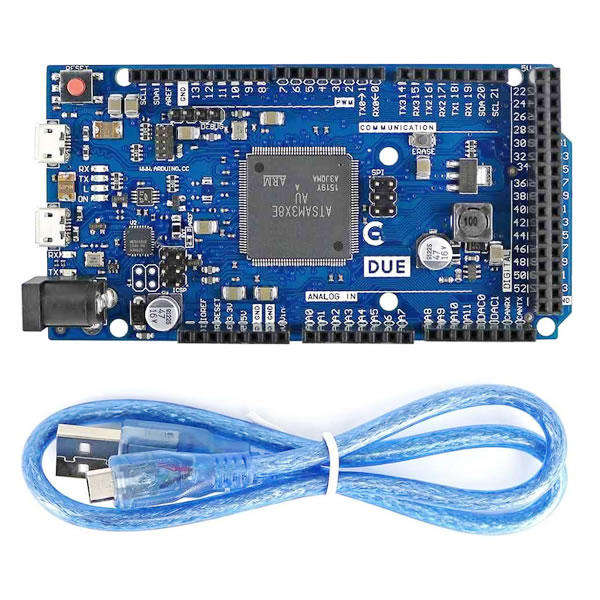

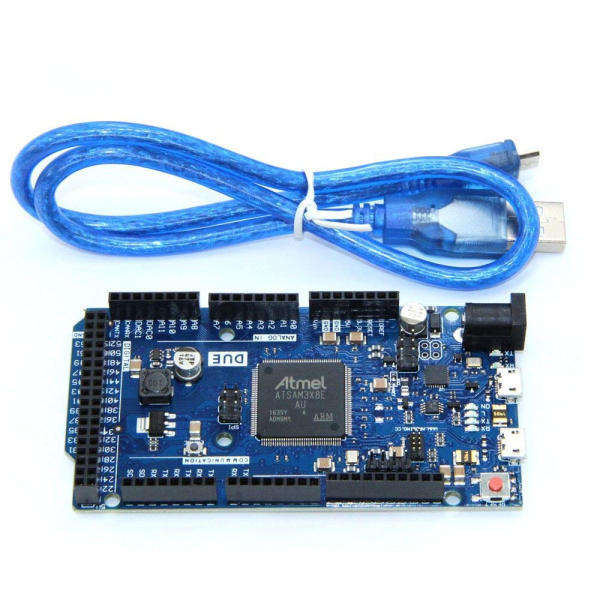

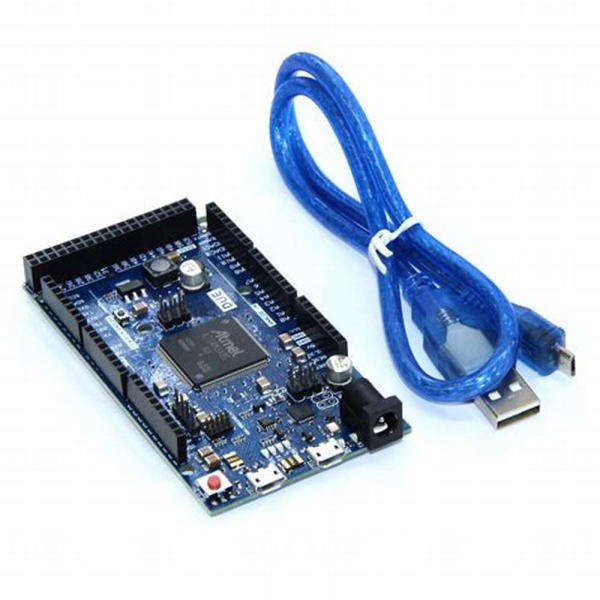

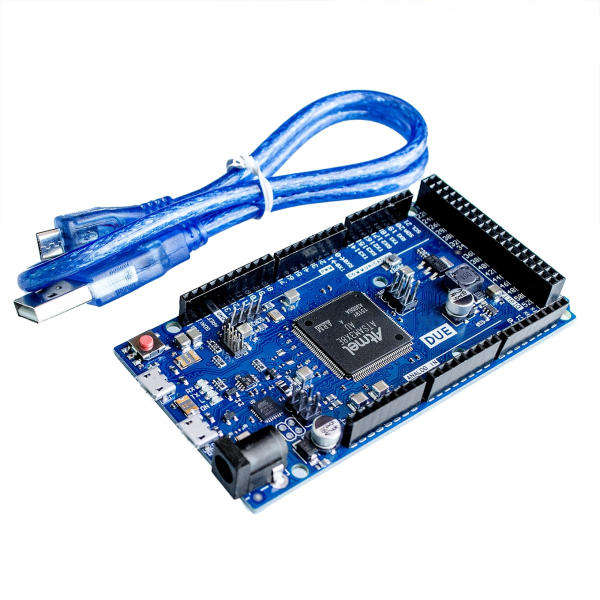

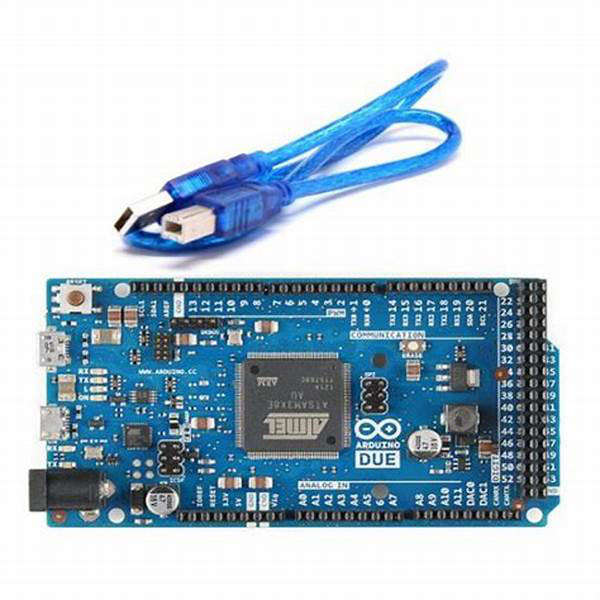

Arduino DUE 2012 R3, ARM 32-bit master, development board

• The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU.
• It is the first Arduino board based on a 32-bit ARM core microcontroller.
• It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.
• Warning: Unlike other Arduino boards, the Arduino Due board runs at 3. 3V.
• The maximum voltage that the I/O pins can tolerate is 3. 3V.
• Giving an I/O pin a higher voltagesuch as 5Vcould harm the board.
• Everything required to support the microcontroller is already on the board; all you need to do is power it with a battery or an AC-to-DC adapter or connect it to a computer via a micro-USB cable to get going.
• All Arduino shields that operate at 3. 3V and adhere to the 1. 0 Arduino pinout are compatible with the Due.
• The 1. 0 pinout is used by the Due: - TWI: Pins SDA and SCL adjacent to the AREF pin. - The IOREF pin, which enables a shield to be added and configured appropriately to adjust to the voltage supplied by the board.
• This allows shield compatibility with AVR-based boards that run at 5V and 3. 3V boards like the Due.

Specifications:

• I/O pins: 54 (PWM 12, analogue inputs 12, analogue Ausagnge (DAC) 2, UARTs 4.
• SRAM: 96 kB.
• Clock speed: 84 MHz.
• Connections: SPI, JTAG, Micro-USB, Micro-USB Host.
• LEDs: RXD, TXD, Power, user-LED.
• Recommended Input voltage 7 - 12 V.
• Maximum input voltage: 20 V.
• Maximum current of all I/O pins: 130 mA.
