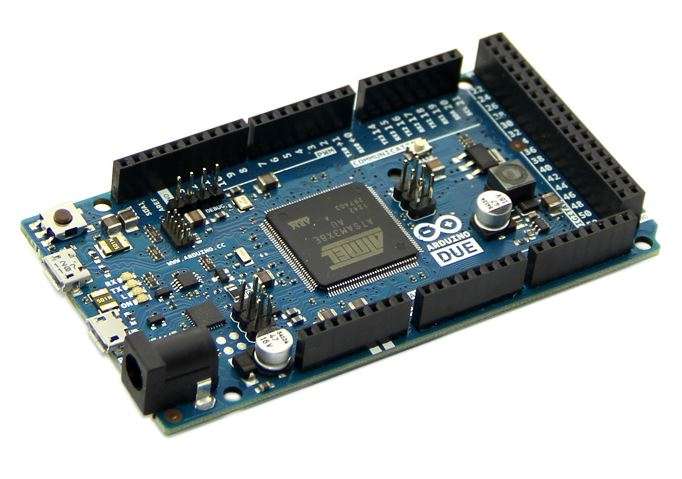

Arduino Due

Arduino Due

Product Description:

The Power of Arduino Due - Put your Arduino project on TURBO mode with the high-speed, high-power Arduino Due! The Due cranks it up to 11 with an 84 MHz ARM core processor - 512K of FLASH storage! 96K of RAM! Both USB client and host! The Arduino Due is ideal for those who want to build projects that require high computing power.

The Arduino Due also gives students the opportunity to learn the inner workings of the ARM processor in a cheaper and much simpler way than before.

Specifiactions:

• _{Microcontroller: AT91SAM3X8E}
• _{Due - Compatible}
• _{Operating Voltage: 3.3V}
• _{Recommended Input Voltage: 7-12V}
• _{Min-Max Input Voltage: 6-20V}
• _{Digital I/O Pins: 54 (of which 12 provide PWM output)}
• _{Analog Input Pins: 12}
• _{Analog Outputs Pins: 2}
• _{Total DC Output Current on all I/O lines: 130 mA}
• _{DC Current for 3.3V Pin: 800 mA}
• _{DC Current for 5V Pin: 800 mA}
• _{Flash Memory: 512 KB all available for the user applications}
• _{SRAM: 96 KB (two banks: 64KB and 32KB)}
• _{Clock Speed: 84 MHz}

_{Please Note: Locally stocked, Available for immediate shipping!}

Email: [email protected] for more Info on this Product!
