Arduino LCD Display Module 2.4" TFT with Touch Screen
Sold

Arduino LCD Display Module 2.4" TFT with Touch Screen

2 were available / new
Indicative market price: R375.00
R175.00
53% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Bob Shop ID
161556784

Description :

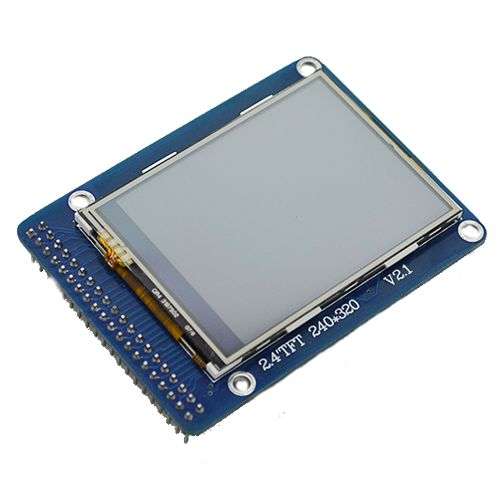

2.4-inch TFT Color LCD Module  is a TFT LCD Screen Module , 40pins interface , not just a LCD break but include the Touch , SD card and Flash design. So it’s a powerful extension module for your project.

This item is 240374PQ . It’s a 65K color , 320*240 (resolution),2.4 inch TFT LCD screen.The LCD has a wide viewing angle , the contrast is also very suitable.

The Screen include a controller ILI9325, it’s a support 8/16bit data interface , easy to drive by many MCU like STM32 ,AVR and 8051.

It is designed with a touch controller in it . The touch IC is XPT2046 , and touch interface is included in the 40 pins breakout. We will offer two version of it, one is with touch screen and touch controller , another is without the touch function , it will just use as a LCD screen for display- so it will be inexpensive than former.

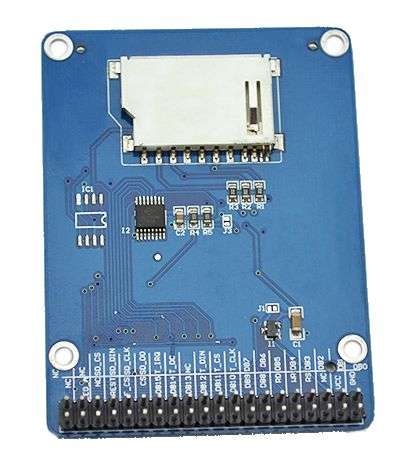

Another useful extension in this item is the SD Card socket . It use the SPI mode to operate the SD  card, the SPI interface include in the 40pins breakout.

There is a reserve extension design in it, that’s the external flash . It’s leave the pad and the pins out for the SST25VF016B Flash. So when you need , you can easily add a external flash for your project .

It layout a 40 pins interface for your project , the interface include LCD bus, SD card bus, Touch screen bus and the Flash bus.
