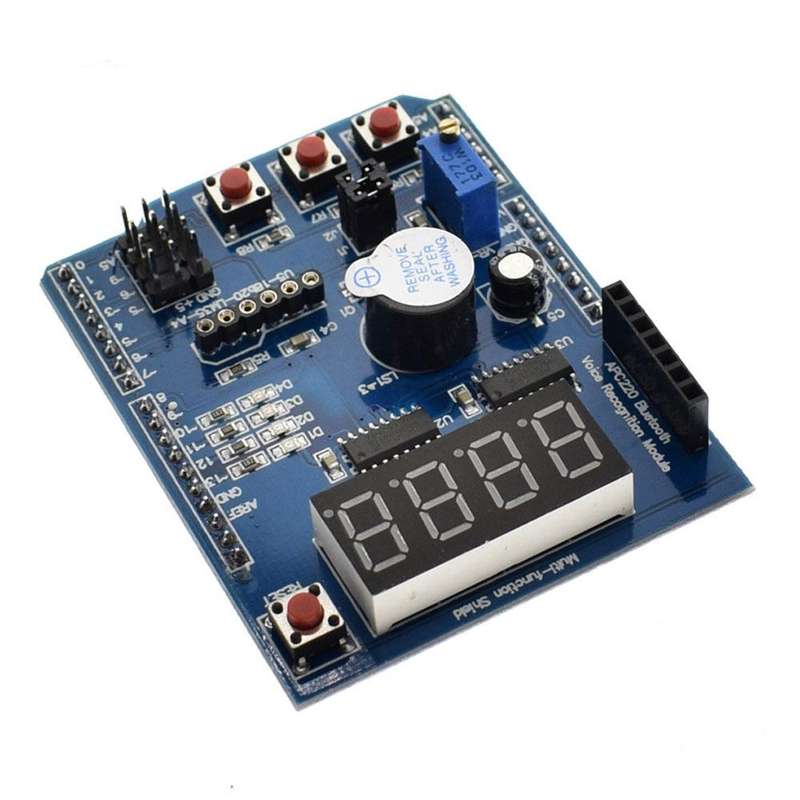

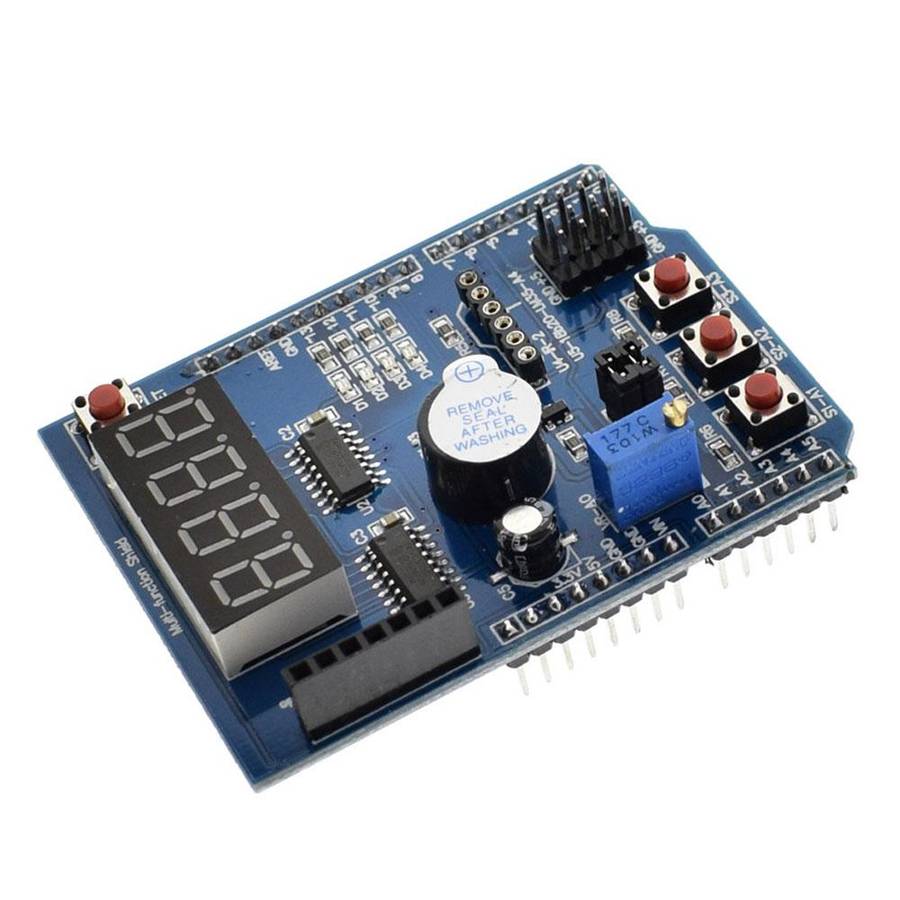

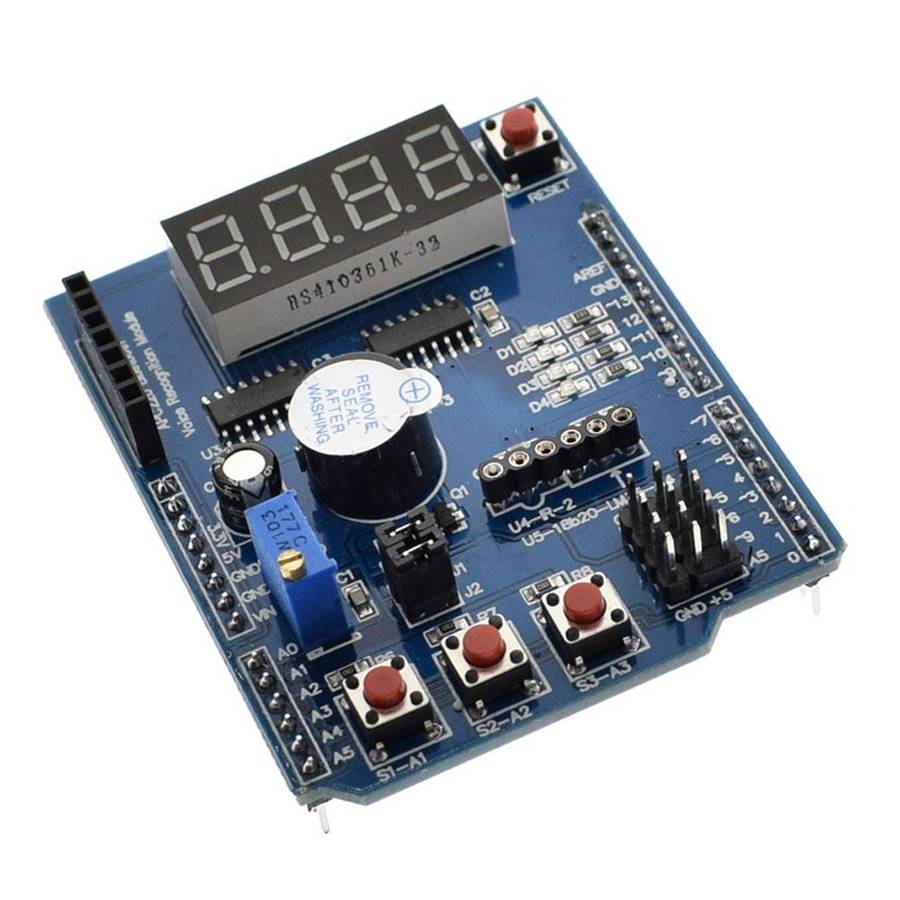

Arduino Learning Shield

New 32 available
R76.30
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
C02
Bob Shop ID
647557027

Description

These shields are EXTREMELY handy to learn how to use Arduino and the IDE because it's plug and play and you don't have to wonder is the project not working because of hardware or a loose wire....Get up and running quickly.

ALL OUR ITEMS ARE LOCALLY STOCKED AND SHIPS IMMEDIATELY!

Specifications

 User manual: Click to download

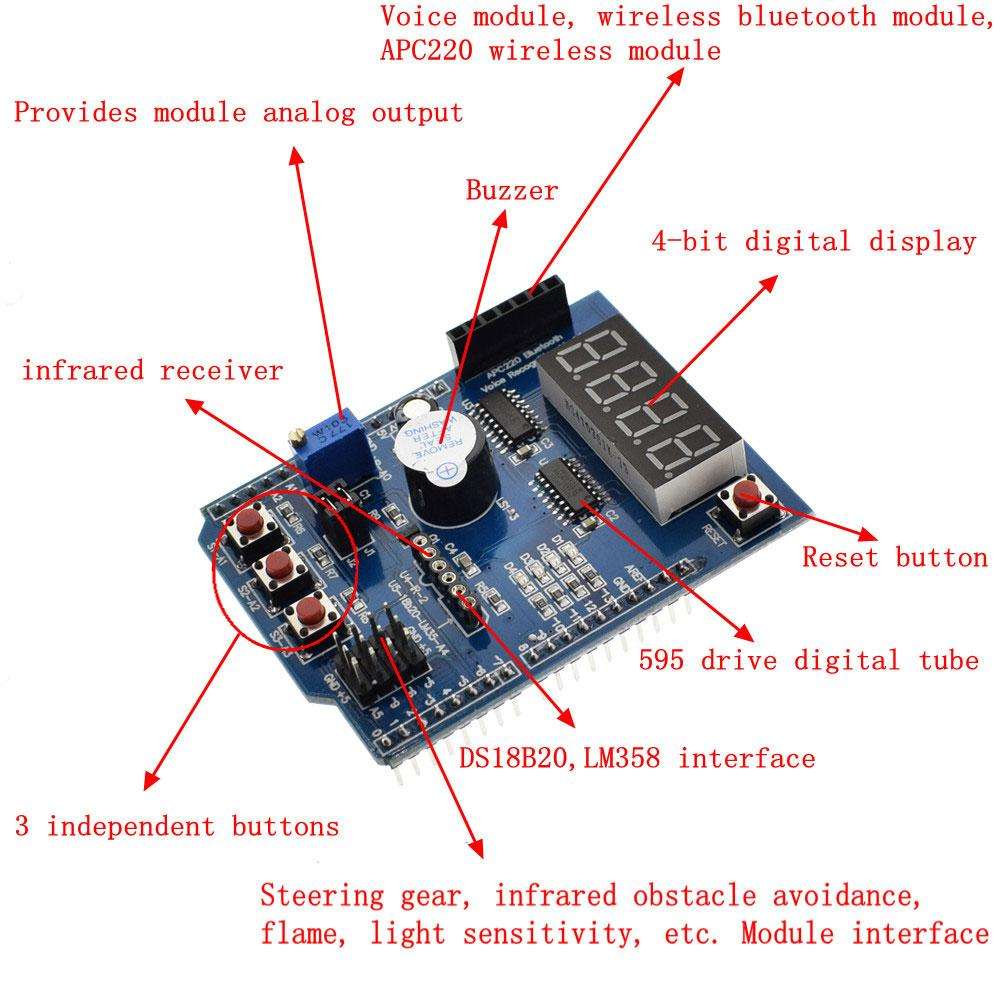

Features

~ 4 digit 7-segment display.
~ 4 x LEDs
~ 1 x 10K adjustable precision potentiometer ADC readings.
~ 3 x Independent push buttons
~ Piezo buzzer
~ DS18B20 temperature sensor interface
~ LM35 temperature sensor interface
~ Infrared receiver interface
~ Serial interface to expand the board to other potential communication interfaces like a Bluetooth or Wifi module.

Pin Map

Pin 10 - LED1
Pin 11 - LED2
Pin 12 - LED3
Pin 13 - LED4

Pin A1 - Button 1
Pin A2 - Button 2
Pin A3 - Button 3

Pin A0 - 10K Pot

Pin 3 - Buzzer

Pin 2 - IR

Pin A4 - LM35 or DS18B20 interface

4 Digit Seven Segment interface (74HC595)
Pin 4 - CS
Pin 7 - Clock
Pin 8 - Data

Free pins
Pin 5, Pin 6, Pin 9 and Pin A5
