Arduino Mega 2560 R3

Arduino Mega 2560 R3

Product Package Content(s):

1 X Arduino Mega 2560 Compatible R3 Board

1 X USB CABLE

We also stock the Arduino MEGA 2560 Starter Kit which includes some useful components that you can use to get started.

Overview

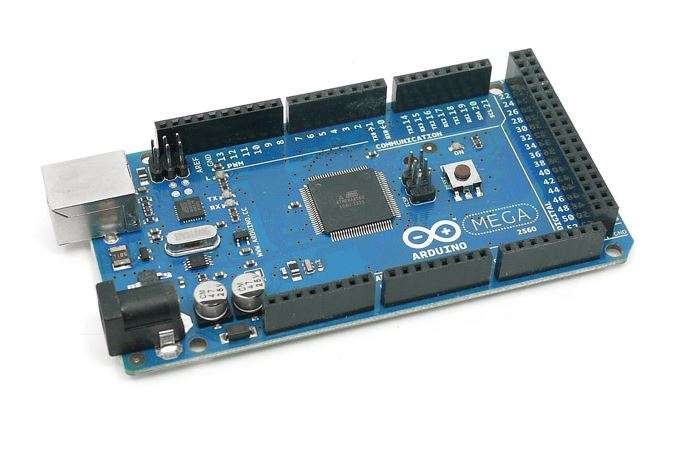

The Arduino Mega 2560 Compatible is a microcontroller board based on the ATmega2560 (datasheet). It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

Please note : This is the Arduino Mega 2560 R3 Compatible.

The Mega 2560 is an update to the Arduino Mega, which it replaces.

The Mega2560 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the ATmega16U2 (ATmega8U2 in the revision 1 and revision 2 boards) programmed as a USB-to-serial converter.
Revision 2 of the Mega2560 board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

_{Please Note: Locally stocked, Available for immediate shipping!}

Schematic, Reference Design & Pin Mapping

Summary
