Arduino Mega Sensor Shield V2.0 ***LOCAL STOCK***

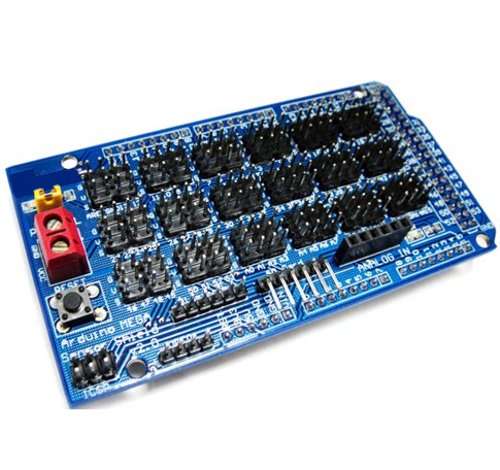

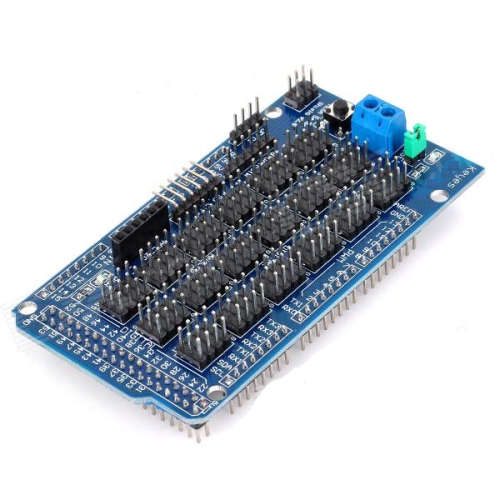

This shield board plugs on top of an Arduino MEGA (1280 or 2560) and makes it easy to connect to all the MANY Digital Inputs and Outputs and the Analog Inputs. This is particularly good for high I/O projects with many LEDs or controls where connections to the Mega can be a major problem. Every connection has a set of 3 pins: Gnd-Voltage-Signal that makes it easy to connect with our 3-pin cables or jumpers.

This version has two options of +5V supply to all the "V" pins:

1. Jumper on: +5 comes from the Arduino. Should be limited to about 300 mA
2. Jumper off: +5 comes from the blue terminal strip and an external supply.

Using an external supply allows power for control of many servos or relays, and other attached devices.

There is also a power-good LED, and Reset button, and connections for other I/O devices.

Features :

Mega Sensor Shield V2.0 pinout all of the Arduino digital and analog interface.

Supports IIC interface

Supports 32 road Servo Motor Drive Shield interface

Supports bluetooth module  communication interface

Supports SD card module communication interface

Supports APC220 wireless rf modules communication interface

Supports RB URF ultrasonic sensors interface

Supports  LCD serial and parallel interface

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
