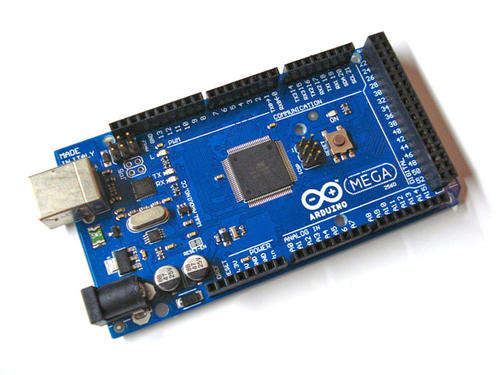

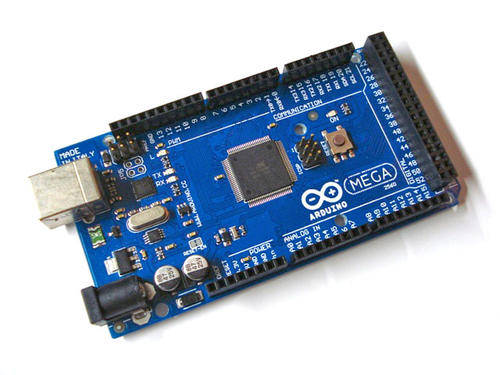

The Mega R3 is a microcontroller development board with an ATmega2560 at the core. It contains 54 digital I/O pins (of which 14 provide PWM output), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove or Diecimila.
R3 improvements:
- Add SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
- Stronger RESET circuit.
- Atmega16U2 replace the Atmega8U2
Features:
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Recommended Input Voltage: 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (of which 14 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 256 KB of which 8 KB used by bootloader
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz
Note: This is an Arduino compatible Mega board. It comes packaged in an anti-static bag instead of the retail boxed version.
Note: This is an Arduino compatible Mega board. It comes packaged in an anti-static bag instead of the retail boxed version.
