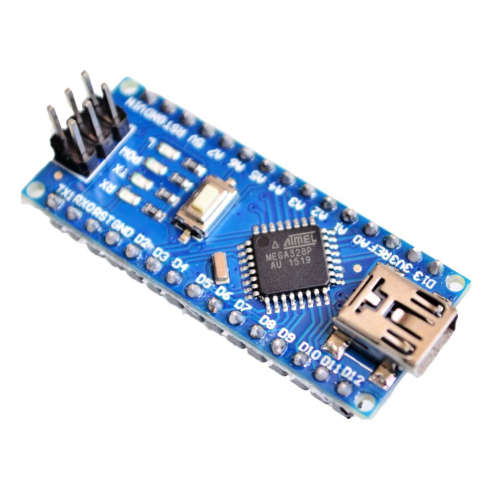

Arduino Nano V3.0 Mini USB ATMega328P 16MHz 5V Development Board - CH340

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

MicrocontrollerATmega328
Operating Voltage (logic level)5 V
Input Voltage (recommended)7-12 V
Input Voltage (limits)6-20 V
Digital I/O Pins14 (of which 6 provide PWM output)
Analog Input Pins8
DC Current per I/O Pin40 mA
Flash Memory32 KB (ATmega328) of which 2 KB used by bootloader
SRAM2 KB (ATmega328)
EEPROM1 KB (ATmega328)
Clock Speed16 MHz
Dimensions18mm x 45mm
Length45 mm
Width18 mm
Weigth6,5 g

 Free : USB Cable for regular customers - Mail me when you order to claim

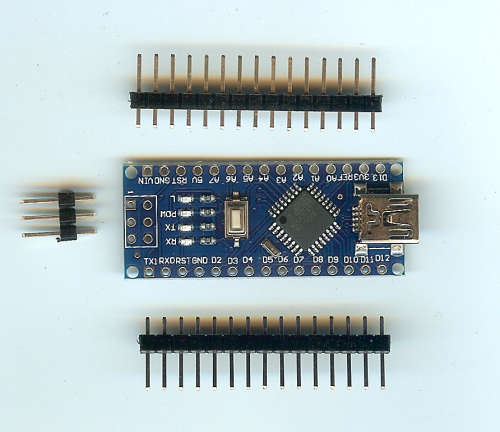

This item comes in a flat pack and some soldering is required.

USB support via CH340 chipset.

Drivers are available  www.driverscape.com/download/usb-serial-ch340

Connect to PC with Arduino IDE available at www.arduino.cc/en/Main/Software

This item is available in stock and is not drop shipped. This avoids delays, customs and extra VAT.
