Arduino Nano V3.0 Mini USB ATMega328P 16MHz 5V Development Board - CH340 - Soldered***LOCAL STOCK***
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

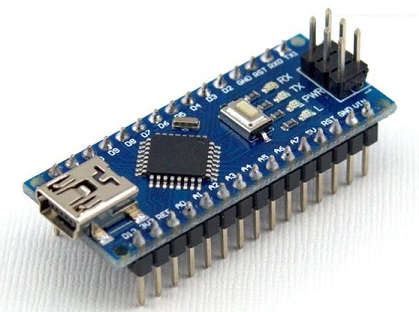

Arduino Nano V3.0 Mini USB ATMega328P 16MHz 5V Development Board - CH340
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Microcontroller : ATmega328
Operating Voltage (logic level) : 5 V
Input Voltage (recommended) : 7-12 V
Input Voltage (limits) : 6-20 V
Digital I/O Pins : 14 (of which 6 provide PWM output)
Analog Input Pins : 8
DC Current per I/O Pin : 40 mA
Flash Memory : 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM : 2 KB (ATmega328)
EEPROM : 1 KB (ATmega328)
Clock Speed : 16 MHz
Dimensions : 18mm x 45mm
Weigth : 6,5 g
This unit has all pins soldered into place.
Free : USB Cable for regular customers - Mail me when you order to claim
USB support via CH340 chipset.
Drivers are available www.driverscape.com/download/usb-serial-ch340
Connect to PC with Arduino IDE available at www.arduino.cc/en/Main/Software
This item is available in stock and is not drop shipped. This avoids delays, customs and extra VAT.
