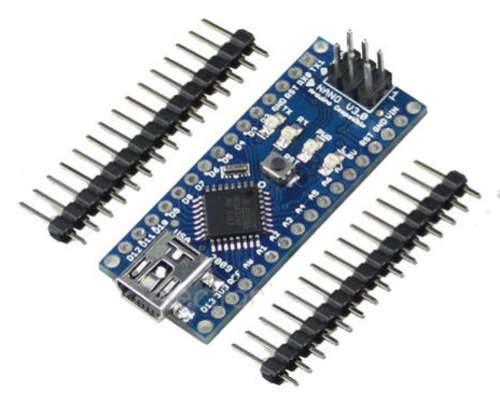

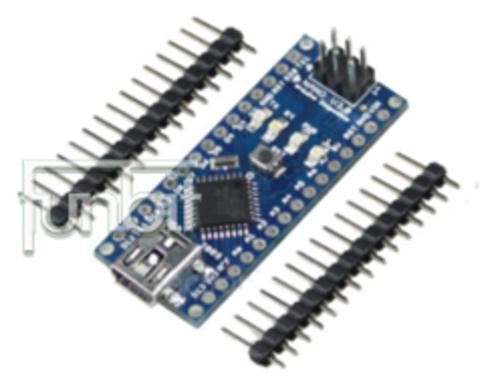

ARDUINO NANO V3.0 MODULE WITH ATMEGA328P
Product information
The Arduino Nano V3.0 is an ultra-small and simple I/O platform base with open source code support. The Arduino Nano has a big advantage compared to the UNO in its size to pin ratio. The Arduino Nano can be used to develop electronic projects which run independently. It can also be used to develop interactive projects which connect directly to a computer.
Uses an Atmega328P-AU MCU
Onboard FT232RL
32KB Flash Memory (ATmega328) of which 2KB is used by bootloader
2KB SRAM
1KB EEPROM
Clock Speed 16MHz
12 Digital input / output pins: D2 - D13
8 Analog inputs pins: A0 - A7
1 pairs of TTL level serial transceiver ports RX / TX
6 PWM pins: D3, D5, D6, D9, D10 and D11
Support Mini-USB download and power
Support for external 5V - 12V DC power supply
Support power supply by 9V battery
Support ISP download
Operating Voltage 5V through on-board regulator
Input Voltage (recommended) 7V - 12V
Input Voltage (limits) 6V - 20V
DC Current per I/O pin: 40 mA
DC Current for 3.3V pin: 50 mA
Specifications
Size: 45 x 17 x 19mm
Net weight: 24g
Colour: Blue (as per picture)
Package includes
1 x Arduino Nano V3.0 with ATMEGA328P Module
3 x Pin Headers (not soldered as per picture)
