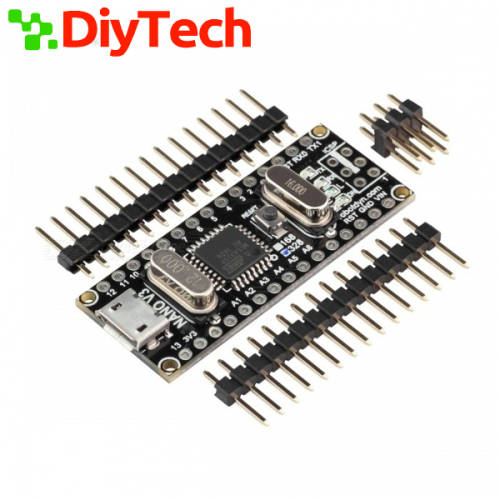

 Arduino NANO V3 ATMEGA 328/CH340



Description:

Nano V3 constructed on the ATmega328 microcontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with Arduino Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.

The board uses a chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction).

Nano V3, can be powered via microUSB-port (up to 500mA). On board have fuser for 500mA for save from SUB-port. External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.

Specifications:

  • Model: Nano V3 ATmega 328/ch340
  • USB - Micro USB
  • USB-TTL Converter: CH340G
  • Microcontroller: Atmel ATMega 328P
  • Power Out: 5V-800mA 3.3V-180mA
  • Power In (Pin VIN): 6-12V
  • Power to USB-port: 5V (500mA maximum)
  • PinOut: V3.0
