Arduino Nano

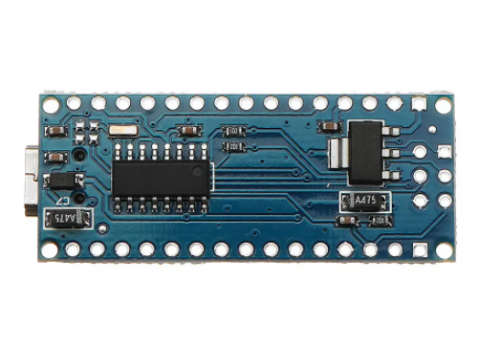

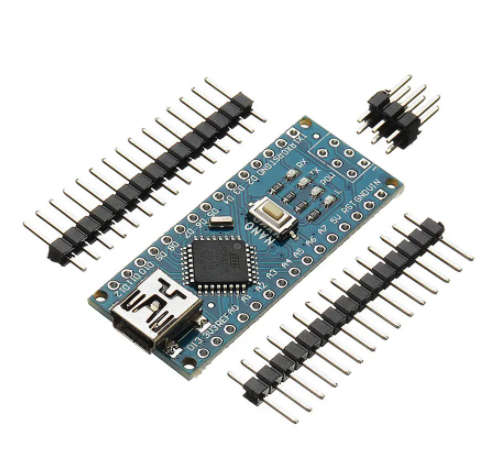

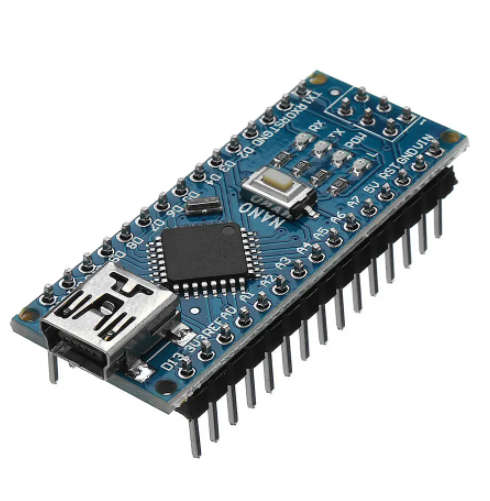

This is a Geekcreit Arduino Nano Clone, featuring unsoldered (but included) headers, making it ideal for projects that require a more permanent solution. This board functions exactly the same as an Arduino Nano and has no issues using the same setting as the Arduino Nano in the Arduino IDE.

NOTE that it does not include the USB to mini-B cable.

Arduino ATmega328 CLONE
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
