2WD SMART MOTOR

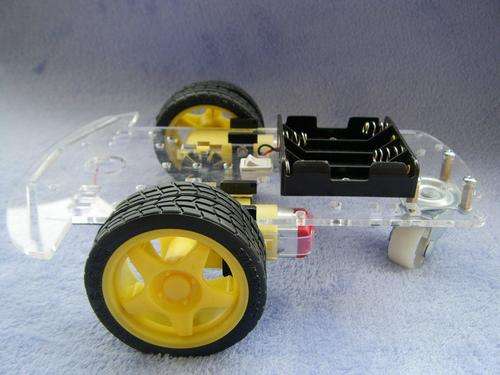

ROBOT CAR CHASSIS KIT WITH SPEED ENCODER



Product information
This is a brand new, high quality two wheel drive robot kit that is easy to build. The finished kit with other devices (not included) can be used for distance measurement, velocity measurement, line tracing, obstacle avoidance or be simply controlled by wireless remote control.

Specifications
Chassis material: 3mm Acrylic
Motor power supply required: 3V - 6V
Motor gear reduction ratio: 1:48
Chassis size: 220mm x 147mm
Wheel size: 70mm x 70mm x 26mm.

Motor Specification: Voltage vs RPM

VoltageDC 3VDC 5VDC 6V
Current100mA100mA120mA
Reduction ratio48:1
RPM (with tire)100190240
Tire Diameter66mm
Car Speed (M/minute)203948
Motor Weight (g)                                         50
Motor Size                              70mmX22mmX18mm
Noise                                      <65dB















Package Includes
1 x Car Chassis
2 x Gear Motor (1:48)
2 x Car Wheel and Tire

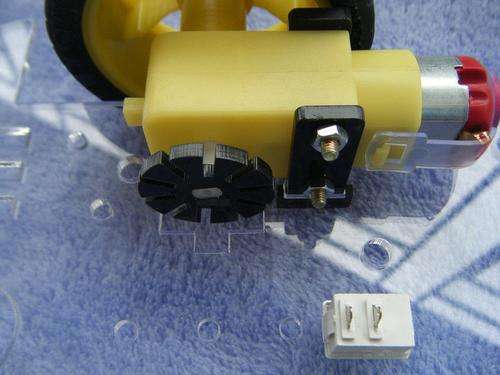

2 x Speed Encoder
2 x Fastener
1 x Universal Wheel
1 x 4 AA Battery Box
1 x Single pole power switch
1 x Set of required screws and nuts

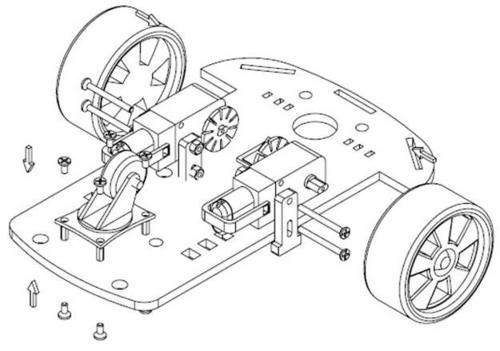

1 x Assembly Instructions
No retail packaging. Kit packaged safely in bubble wrap

See YouTube link below for assembly instructions
https://www.youtube.com/watch?v=IkcAx9hKKxs
