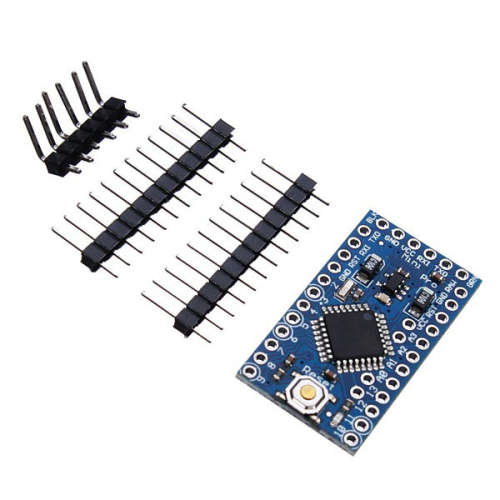

Arduino Pro Mini ATMega328 5V 16MHz
The Arduino Pro Mini is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
| Microcontroller | ATmega328 |
| Operating Voltage | 3.3V or 5V (depending on model) |
| Input Voltage | 3.35 -12 V (3.3V model) or 5 - 12 V (5V model) |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 32 KB (of which 2 KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM | 1KB |
| Clock Speed | 8 MHz (3.3V model) or 16 MHz (5V model) |
The Arduino Pro Mini requires an FTDI cable to download the program.
This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
