Arduino Pro Mini ATmega328P (Compatible)

ARDUINO PRO MINI ATMEGA328P (COMPATIBLE)

Product information
The Arduino Pro Mini is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini. There is a voltage regulator on board so it accepts voltages up to 12VDC. If you're supplying unregulated power to the board, be sure to connect it to the "RAW" pin and not the VCC pin. The included six pin header can be mounted to the board to provide USB power and communications via an external FTDI FT232RL USB to Serial adapter or equivalent.

32KB Flash Memory of which 2KB is used by bootloader
2KB SRAM
1KB EEPROM
Clock Speed 16MHz
4 channels of 10-bit ADC
6 PWM pins
14 Digital IOs
Hardware serial connections RX and TX
Support for external 5V - 12V DC power supply connected to RAW pin
Support 9V battery connected to RAW pin
Operating Voltage 5V through on-board regulator
Input Voltage 12V (max)
DC Current per I/O pin: 40 mA (max)

Specifications
Net weight: 5.5g

Package includes
1 x Arduino Pro Mini ATmega328P (Compatible)

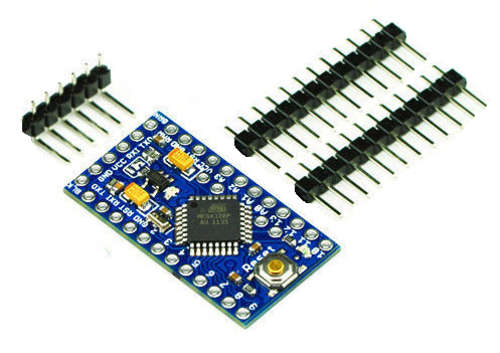

3 x Pin Headers (not soldered as per picture)
