Arduino TSX00083 Development Board, Arduino Protoshield Rev 3

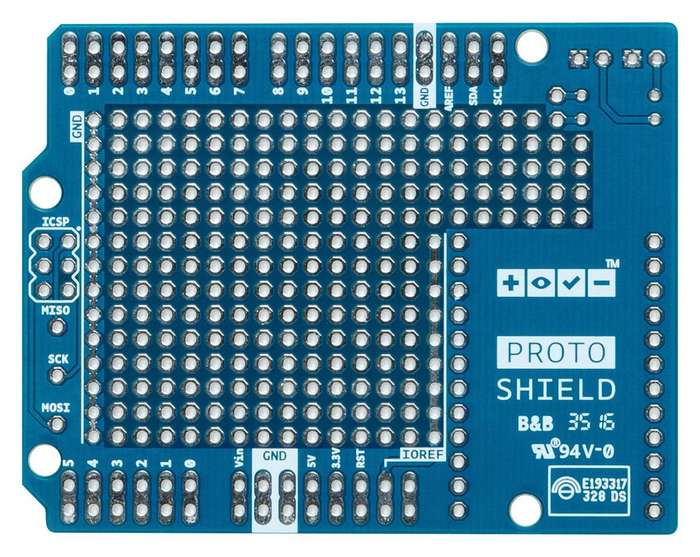

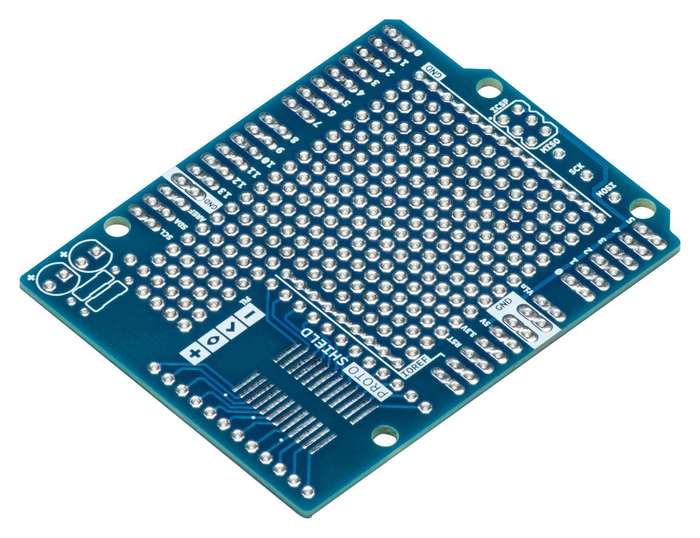

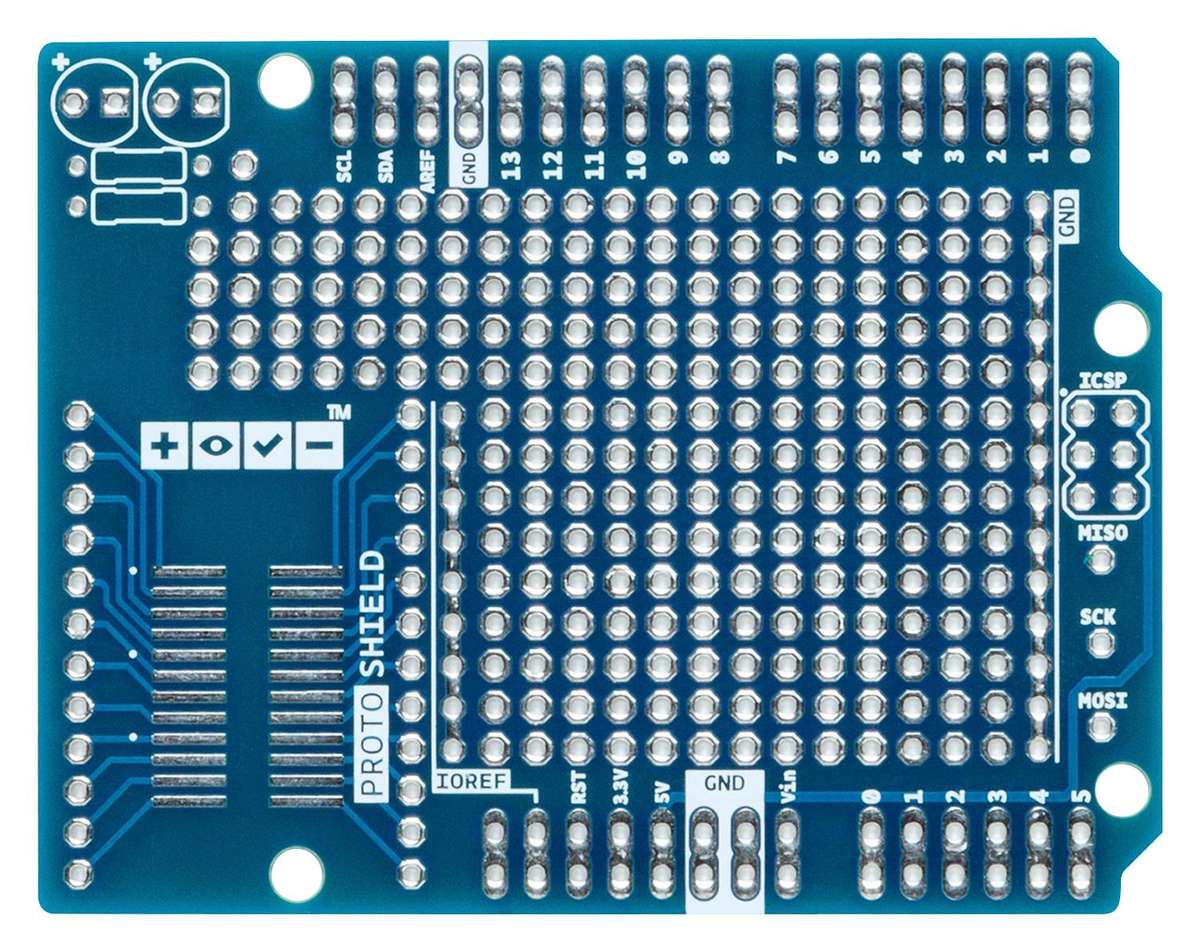

TSX00083 - Development Board, Arduino Protoshield Rev 3, Soldered PrototypingShield For ArduinoThe ProtoShield makes it easy for you to design custom circuits. You can easilysolder TH or SMD ICs on the prototyping area to test them with your Arduinoboard. The SMD area is designed for a maximum of 24 pins SOIC integrated circuitand the TH area contains a lot of space for the needed components around yourproject. You can even stick a mini breadboard (not included) on the protoareafor solderless operation. The proto area includes also two power lines (IOREFand GND), two LEDs pads and SPI signals breakout pads for boards with SPI onlyon the ICSP header like Zero.Key features:1.0 Arduino Pinout1 ICSP Connector footprint2 LEDs and resistor footprintIOREF and GND power linesSPI signals pads24 pin SMD footprint (50 mils pitch)
