Arduino UNO R3 ATMEGA328P Compatible Mini USB CH340 ***LOCAL STOCK***

Arduino UNO R3 ATMEGA328P Compatible Mini USB CH340

This is the upgraded version. Now supports mini USB.  An extra row of header pins can be added to accomodate Dupont cables..

The UNO is the best board to get started with electronics and coding. If this is your first experience tinkering with the platform, the UNO is the most robust board you can start playing with. The UNO is the most used and documented board of the whole Arduino family.

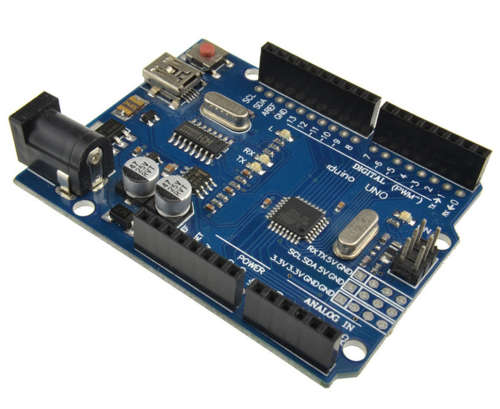

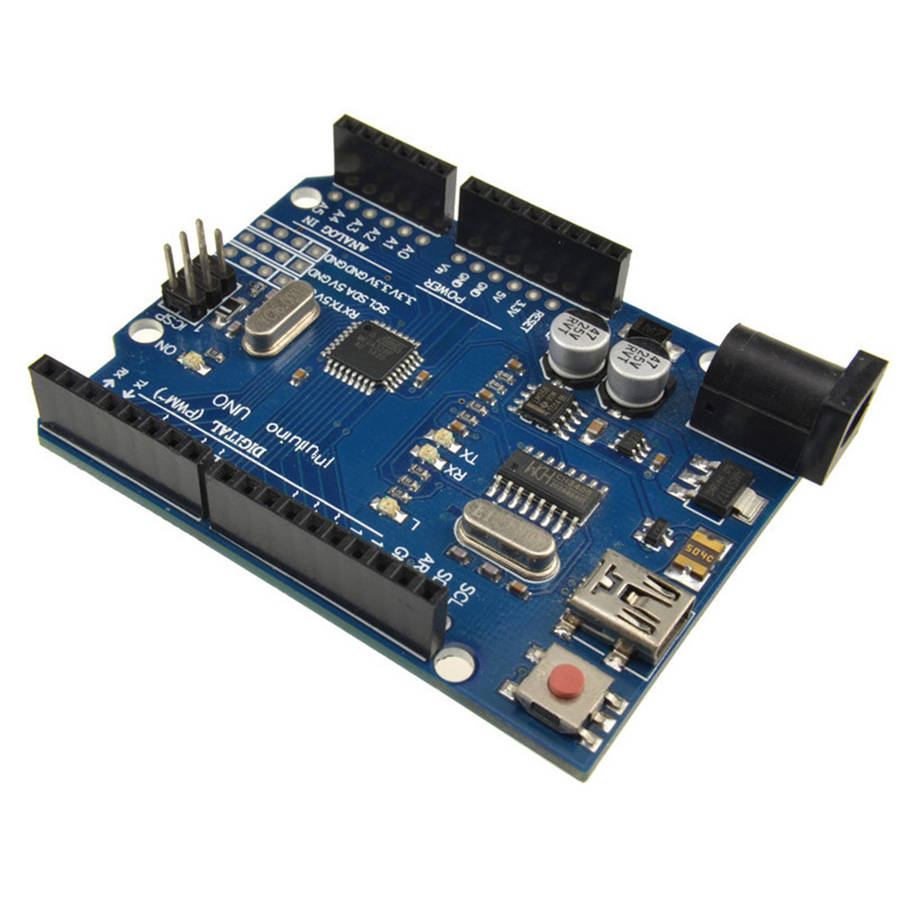

The Uno is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a Mini USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

This version uses the CH340 chip to allow USB connection.

Drivers are available http://www.microcontrols.org/wp-content/uploads/2015/05/DRIVER1_CH340.zip

Connect to PC with Arduino IDE available at www.arduino.cc/en/Main/Software

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
