Arduino Uno R3 development board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Brand:
Arduino
Customer ratings:
Product code:
DEV-002
Bob Shop ID:
593184062

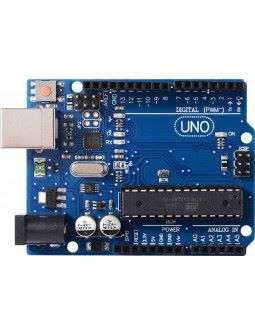

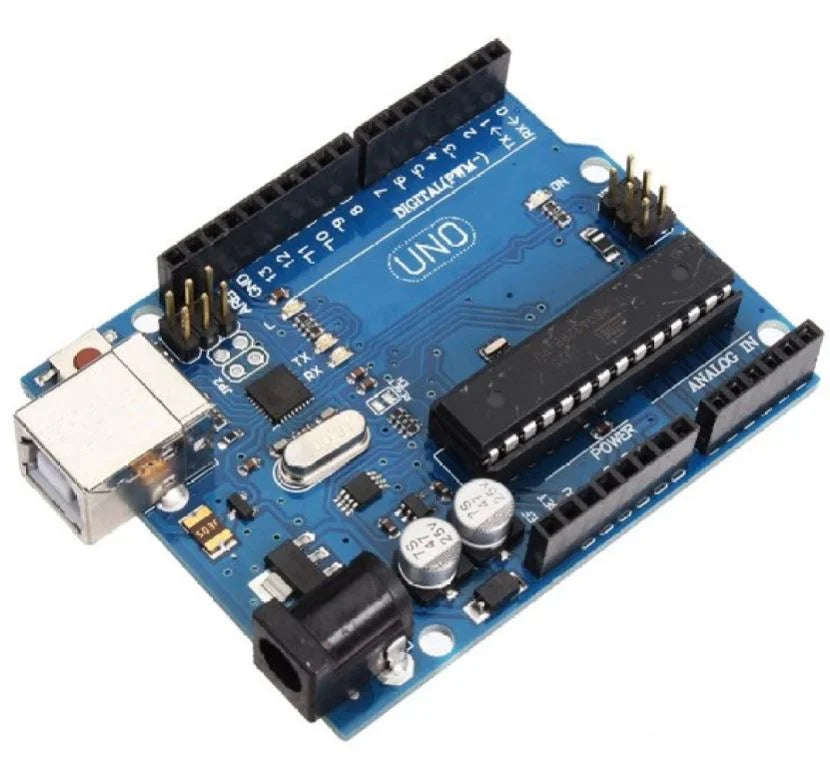

Arduino Uno R3 development board.
The Arduino Uno R3 development board is a microcontroller board based on the ATmega328P chip mainly used for development and prototyping. It has 14 digital input/output pins (6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your Arduino UNO without worrying too much about doing something wrong. In the worst-case scenario, you can replace the chip and start over again.
You can download the Arduino IDE software for free on the Arduino official website.
This board is a 100% identical clone, not the original Arduino Uno. We sold many of them and had no problems with these boards. They are high quality 100% similar, but at a much better price. You can be confident that these boards work just as well as the original.
Arduino Uno R3 development board Specifications:
Arduino Uno R3 development board Specifications:
| Microcontroller | ATMEGA328P-PU IC for Arduino |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 20 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega328P) of which 0.5 KB is used by the bootloader |
| SRAM | 2 KB (ATmega328P) |
| EEPROM | 1 KB (ATmega328P) |
| Clock Speed | 16 MHz |
| LED_BUILTIN | 13 |
| Length | 68.6 mm |
| Width | 53.4 mm |
| Weight | 25 g |
Resources:
Eagle Files
Schematics
ATmega328P_Datasheet
Arduino official website
Arduino IDE

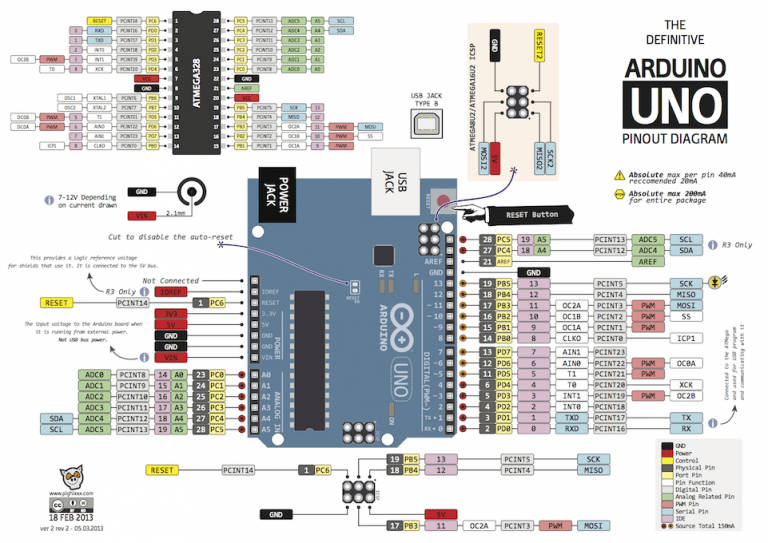

Here is a very descriptive pinout diagram for the Arduino Uno R3 development board we've found.
