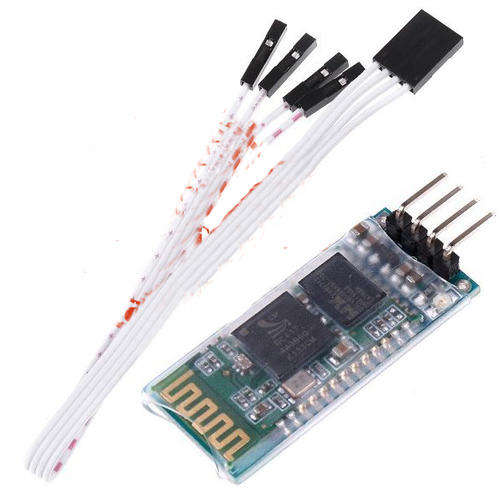

Arduino Wireless Bluetooth Board 115200bps Slave HC-06

Here we have a bluetooth serial port which allows your target device to both send and receive data via Bluetooth technology without connecting a serial cable to your computer.

Free yourself from the bondage of cables. Although you will receive a 4 port data cable to connect to the bluetooth device.

• Model HC06
• Wireless range of 10 m.
• Easy to use and completely encapsulated
• No need to know complex bluetooth protocols, just follow a few simple steps to enjoy the convenience of wireless communication.
• Test communications, change the buad rate, and change the bluetooth password through the TXD and RXD lines
• Compatible with all MCU families eg. PIC, Arduino, ARM MSP430
• Chipset: CSR BC417143 http://www.csr.com/products/technology/bluetooth
• Bluetooth V2.0
• Working voltage: 3.3V
• Current: pairing 20~30mA, connected 8mA
• User defined Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 (9600 by default)
• Default serial port setting: 9600, N, 8, 1
• Password: 1234
• This is a slave bluetooth module that will send and receive bluetooth signals from and bluetooth enabled device

• Simply wire the bluetooth module as below.
• Search for bluetooth devices on your PC or phone
• Use the password 1234 and connect.
• The rest is up to you.
• Full datasheet and example code
