Ardunio CNC Shield | Arduino Uno CNC Shield
1 was
available
/ new
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 1 business day. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Product information

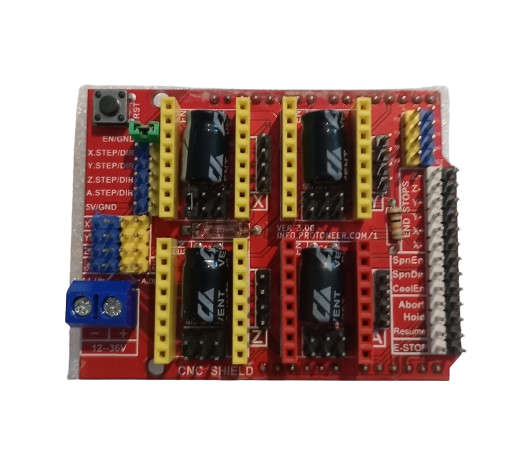

The Arduino CNC Shield is an easy to install expansion for the Arduino UNO board allowing for precision control of up to four stepper motors via GRBL.
Description:
The Arduino CNC Shield is a modularly-designed expansion for the Arduino UNO R3, which expands on the functionality of the UNO board and converts digital signals into computerized numerical control values (or CNC values). These can be utilized for CNC machines to cut, drill, bore or mill materials via accurately controlled Stepper Motors.
What makes the Arduino CNC Shield a great investment, when compared to custom-designed boards, is that they are extremely easy to use, and can simply plug directly onto the top of a standard Arduino UNO board. After this easy installation, makers can utilize freely available GRBL software to create HEX files and upload control specifications directly to the Arduino board. These HEX files, in conjunction with the functionality of the CNC shield, will control the stepper motors with precision allowing makers to create their own drilling, milling and cutting CNC machines at home.
Our Arduino CNC Shield is compatible with all standard Arduino UNO boards and can connect to up to four stepper motors. It provides microstepping selection pins for each of the Motors and is 100% compatible with GRBL software. Additionally, it has Max and Min endstop pins as well as spindle and coolant pins for greater control, while the emergency stop pin helps protect the components and system from excessive damage if faults arise.
Parameters:
Board Compatibility
Arduino UNO R3
GRBL Compatibility
0.8c
Stepper Driver Compatibility
A4988
Operating Voltage
12 to 36V (Depending on Drivers)
Number of Stepper Motor Connections
4 x 4-Pin Molex Connectors
Microstepping Selection Pins
4
Additional Pins
Max; Min; Spindle; Coolant; Limit Switch; Emergency Stop
Applications:
The Arduino CNC Shield is designed for use in CNC, in which stepper motors accurately control a drill, cutting device, laser, engraver or other type of milling tool. As such, most of the projects involving this module are related to CNC programming and machining, and projects you could try at home include:
Building your own CNC machine to drill holes, shapes or names into wood.
Creating a laser cutting or engraving machine that cuts plastics or engraves metals.
Converting a CNC machine from Parallel Port to Arduino and GRBL allowing you to control the machine from your computer or mobile device.
Crafting a 3D scanning table for scanning in precise models of objects or yourself.
However, as ideas progress and GRBL is upgraded, so too will the possibilities for the Arduino CNC Shield. So try some of these projects yourself. You may be surprised at how easy they can become with the modularly designed Arduino CNC Shield.
Sold as is without warranty or support.
