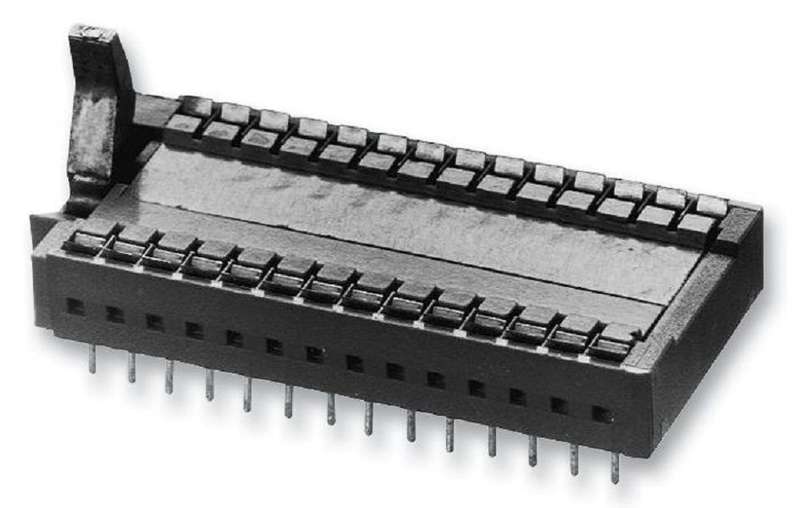

Aries (40-526-10) IC & Component Socket, 40 Contacts, DIP, 2.54 mm

IC & Component Socket, 40 Contacts, DIP, 2.54 mm, 526, 15.24 mm, BerylliumCopperProduct OverviewThe 526 series LO-PRO® file zero insertion force Socket with a metal camprovides strong, smooth action as it moves to a positive stop, compressing thedouble-sided contacts, ensuring a gas-tight seal. The series has choice of 24,28 or 40-pin count device to be inserted without bending or otherwise damagingthe legs, since no force is required to either insert or remove the componentfrom the socket. It is made of glass-filled 4/6 nylon body with spring temperedberyllium copper alloy 172 contacts.Test point openings provided to reach all pinsLightweight, strong and rigid cast zinc alloy cam2A Contact current rating10mR Maximum contact resistanceApplicationsIndustrialProduct InformationNo. of Contacts: 40ContactsConnector Type: DIPPitch Spacing: 2.54mmProduct Range: 526Row Pitch: 15.24mmContact Material: Beryllium CopperContact Plating: Tin Plated Contacts
