ARKBIRD OSD Autopilot stabilizing OSD auto go home Flight GPS Stabilization System

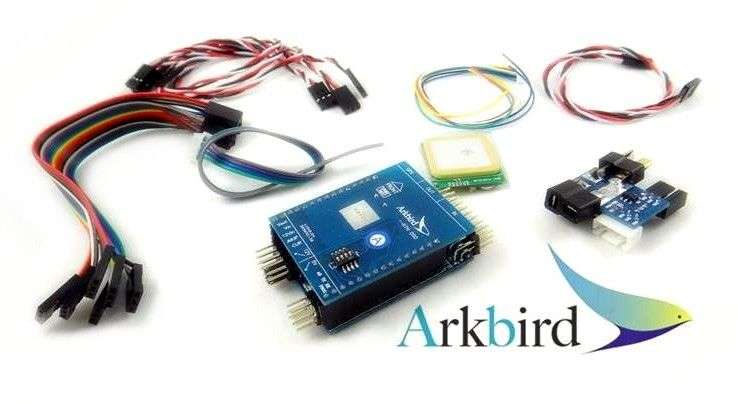

Kit included :
Stablization System OSD R-T-H Return Flight Controller Board,
GPS Module,
Current sensor
Product Features
ARKBIRD Flight Stabilization System is a high-accuracy stabilizer designed for fixed-wing, which has
capability of auto-balancing to ease the manipulation while flying.
1. Attitude sensor through barometer, reliable design; on-board voltage regulation chip, "ESC+ voltage regulation"
dual voltage design.
2. Inertial measurement unit, suitable for any kinds of weather environment.
3. Applicable for small-space model, support delta-wing.
4. Easy to adjust, which saves much time for adjustment and applicable for most models. Intelligent PID controller.
5. One button auto-leveling, one button return-to-home, go home once radio turn off.
6. Return-to-home even the signal from GPS satellite is poor.
7. Gyro normal balance and 3D balance.
8. One button hover mode.
9. Straight constant-height flight.
10. Switching to Return-to-Home Mode while flying over the rectangle area
Specifications:
" Size (w/o pin): 50 x 38 x 14mm
" Weight of Arkbird (w/o cable and cover): 26.8g
" Weight of Current sensor (w/o cable and cover): 12.6g
Notice and install tips:
" As AIRBIRD has no reverse polarity protection, any incorrect wiring will damage the product, please pay attention while installation.
" Please note that ARKBIRD shall be leveling during installation including pitch and roll. You may adjust through observation of OSD artificial horizon.
" MUST keep the transmitter setting as default, especially end-point, travel range, and sub-trim. Any problem, please adjust the control link of plane.
" Please be reminded that test without wind.
