Specification:

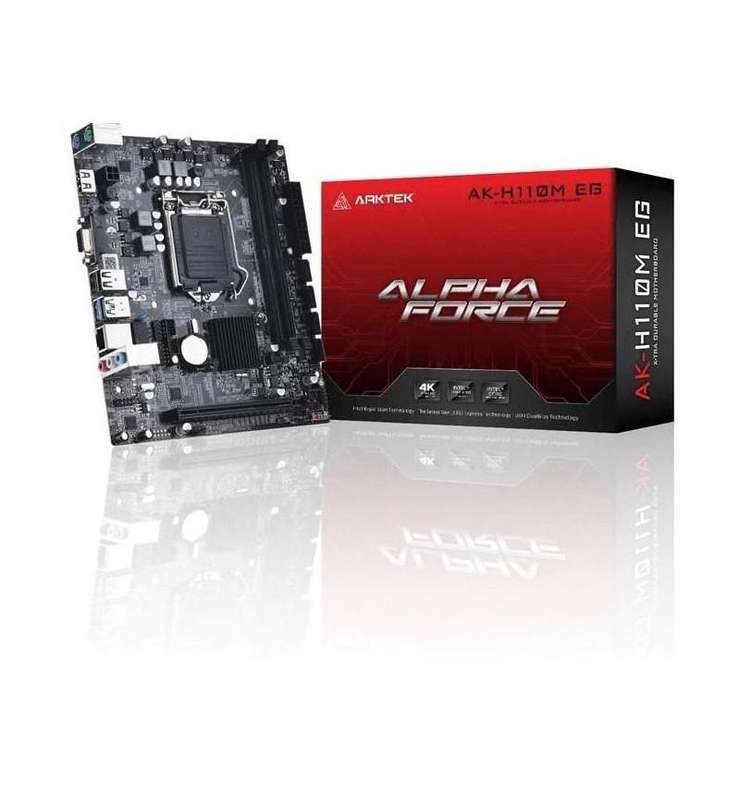

ARKTEK H110 LGA1151 DDR4 MB - AK-H110M EG
Intel H110
Model: AK-H110M EG
Socket: LGA1151
Chipset: Intel H110
Memory Support: Dual Channel DDR4
Spec
Intel: H110
CPU Support: CPU Support: Intel Socket 1151 for 6th/7th/8th/9th Generation
Core i7 /Core i5/Core i3/Pentium /Celeron Processors Supports Intel 14 nm CPU
Chipset: Intel H110 Chipset
On-Board Graphics: Integrated Graphics Processor-Intel HD Graphics support
Memory: 2 DDR4 2400/2666/3000MHz Memory Max. up to 32GB each
DIMM: 2 x Memory Slots
LAN: On board Realtek RTL8105E 10/100 Mbps adaptive Network Card Interface
Audio: Chip integrated by Realtek 661 On board, Supports 6-channel Audio-Out
SATA: 3x SATA, 1xM.2 Supports PCIE+SATA Mode
Real I/O
1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x VGA Port 1 x HDMI Port
2 x USB 2.0 Port 2 x USB 3.0 Port 1 x LAN Jack 3 x Audio Jack
Internal I/O: 2 x USB 2.0 Header Supports additional 3 USB 2.0 Ports
1 x USB 3.0 Header Supports additional 2 USB 3.0 Ports 1 x Front Panel Audio Header
Expansion Slots: 1 x PCI Express x16 slot
Form Factor: Micro-ATX (22 x 17 cm)
OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
Mounting: 4 Mounting Holes
Accessories
1 x SATA Cable
1 x I/O Backboard
1 x User Manual
1 x Driver CD
