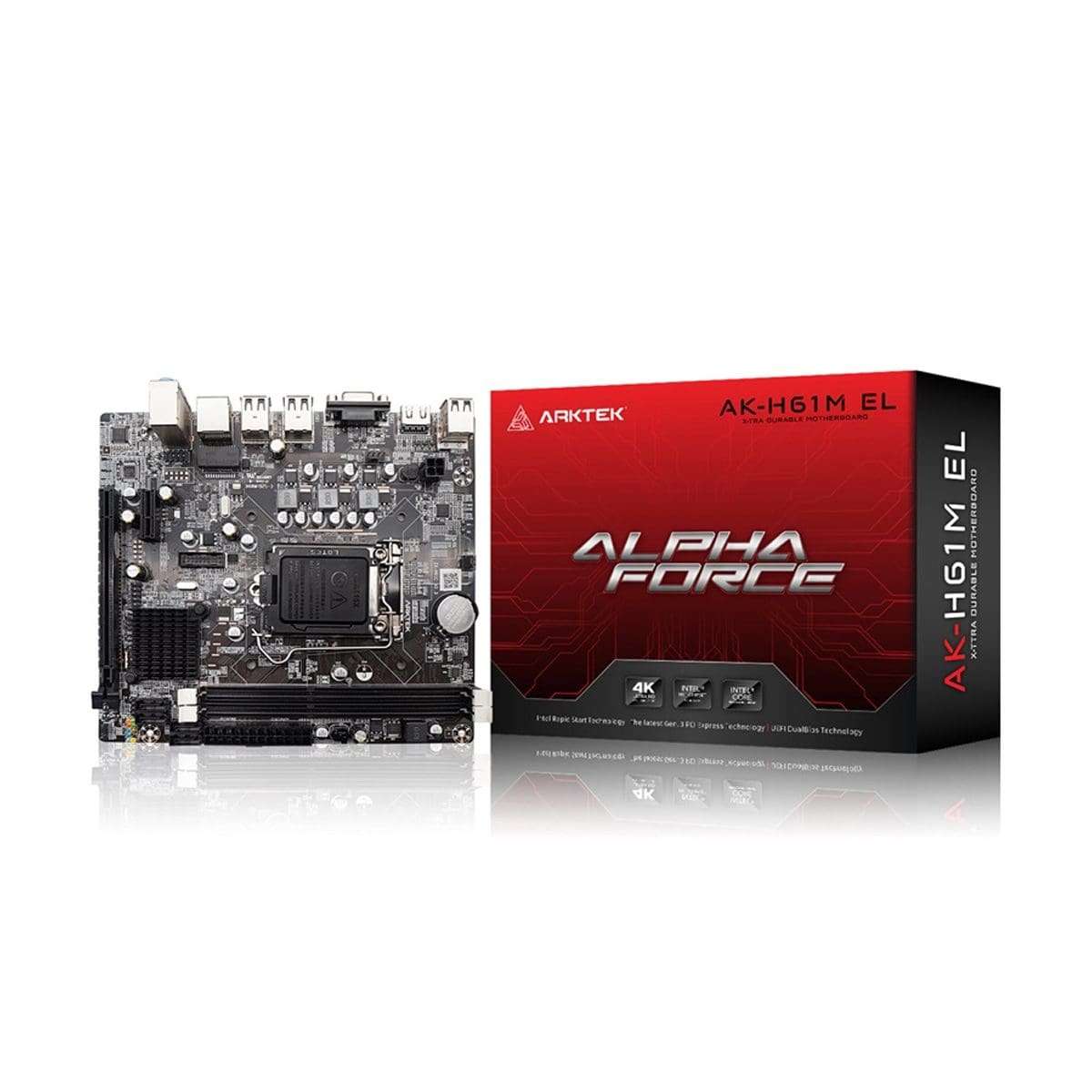

Arktek Intel H61 Intel Socket LGA1155 Micro-ATX Motherboard AK-H61M

ARKTEK One-Stop PC Solution

At ARKTEK, we are dedicated to bringing you Greatness in Gaming by offering you the leading edge in PC components at unbeatable pricing.

Since our 2006 inception as Keda Electronics, we've designed, developed, produced graphics cards as OEM/ODM providers for 30+ world-famous brands. Then in 2017, we launched the ARKTEK brand itself. Ever since, we've been dreaming up innovations to max out your PC's capability with powerful, affordable hardware and we've been blown away by your support! ARKTEK was created by gamers for gamers and we'll always stay true to our roots. Discover Greatness in Gaming with ARKTEK and enjoy our unparalleled pre-and after-sales service

Overview

• Processor: Intel Socket 1155 for Intel Core i7/Core
  i5/Core i3/Pentium/Celeron Processors
• Chipset: Intel H61 Chipset
• On-Board Graphics: Intel Graphics Media Accelerator X4500 HD
• Memory: DDR3 1600/ 1333/1066 memory
• DIMM: 2 x Memory Slots
• LAN: Realtek 8105E/8111E 100/1000 Mbps (Optional)
• Audio: Realtek 6 Channel Audio Codec
• SATA: 4 x SATA port
• ON-Board Pinheaders / Connectors:
  2 x USB 2.0 pinheader supports additional 4 USB 2.0 ports
  1 x Front Panel Audio pinheader
• Slots:
  1 x PCI Express x16 slot
  1 x PCI E x1 slot
• Form Factor: Micro-ATX (21 x 21 cm)
• Mounting: 6 mounting holes
