ARM Cortex-M3 STM32F103C6T6 Microcontroller Development Board | Arduino Compatible ARM Cortex-M3 STM32F103C6T6 Microcontroller Development Board | Arduino Compatible
ARM Cortex-M3 STM32F103C6T6 Microcontroller Development Board | Arduino Compatible ARM Cortex-M3 STM32F103C6T6 Microcontroller Development Board | Arduino Compatible

ARM Cortex-M3 STM32F103C6T6 Microcontroller Development Board | Arduino Compatible

New 4 available
Only 4 left – grab it before it’s gone!
R85.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Bob Shop ID
653476324

Chipset Specs:

  • CS32F103C8T6
  • Package Type: LQFP;
  • Number of pins: 48;
  • Kernel: Cortex-M3;
  • Operating frequency: 72MHz;
  • Storage resources: 64K Byte Flash, 20KByte SRAM;
  • Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports,
  • Analog-to-digital conversion: 2x ADC (12-bit / 16-channel)
  • Timers: 3 general timers and 1 advanced timer
  • Debug Download: Support JTAG / SWD debug interface to download, support for IAP.
  • RT9193: 3.3V regulator chip, the maximum output of 300mA.

Interface Specs:

  • SWD interface: support for simulation, download and debug.
  • Micro USB interface: power supply and USB communication, does not support the download.
  • USART1 interface: USART1 can be used to download the program, or use the USART1 for communication.

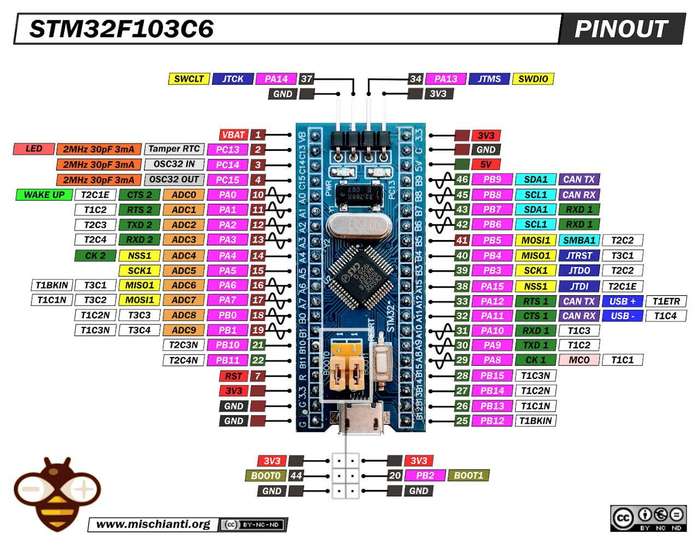

  • MCU pin interface: leads all I / O port pins, easy to connect with peripherals.
  • 5V and 3.3V power input and output interface: commonly used in external power supply, or with other modules for common ground treatment
