Please Note: Due to the limited availability and shortage of stock please ask us if item is in stock before placing order.
Key Features
Chassis: 0.12" (3mm) thick aluminum, black in color
Drive: Four wheel with CVD driveshafts
Radio: Tactic TTX300 2.4GHz 2-channel
Steering Servo: ADS-15M waterproof, 195 oz-in (149 kg-cm) torque @6V, 0.16sec speed @6V, metal gear, 25 tooth spline output
Motor: BLX4074 2050Kv 4-pole brushless
ESC: Waterproof BLX185 150A 6S with built-in cooling fan, and male XT90 connector
Radio Box: New design routes ESC & receiver wires through a rubber seal to avoid pinching when lid is replaced, receiver is attached to a plate that slots into receiver box base, one-piece rubber seal seals out water and dirt
Shocks: 16mm red anodized aluminum body, oil filled, aluminum top and bottom caps, 0.16" (4mm) diameter shaft, new high spring perch
Shock Towers: 0.20" (5mm) thick aluminum, black in color
Suspension: Pivot ball with anti-roll bar
Differentials: Three metal gear
Roll Cage: Composite internal
Body: Trimmed and painted polycarbonate, nylon rear wing
Motor Mount: Aluminum
Battery Tray: From the Outcast 6S, with front to back battery strap, wire routing clips, balance plug stowage, higher sides for better fit, and front upper cap that adjusts to battery height when battery strap is tightened
Tires: dBoots Minokawa, width: 3.3" (85mm), diameter: 6.2" (157mm)
Wheels: Five split spoke, black in color 17mm hex, diameter: 3.8" (97mm), width 2.6" (66mm)
Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
Needed to Complete
AA Batteries: Four for transmitter
Two 2-3S 5000mAh 35C minimum LiPo with XT90 connector, Onyx 11.1V 5000mAh 35C batteries recommended, or one 4-6S LiPo battery
Suitable Charger
LiPo charging sack, building and track equipment
What's in the box?

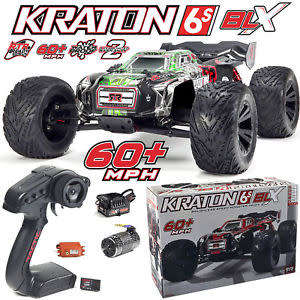

(1) RTR Kraton 6S BLX Speed Truck with Painted Body, 2.4GHz Radio, Waterproof Steering Servo and Receiver Box, BLX185 ESC, 2050Kv Brushless Motor, 12T Pinion Gear, (2) XT90 Battery Connectors and Bridging Wire for single pack use
(1) User Manual
Specifications
Vehicle
Length: 23.39 in (594mm)
Front and Rear Width: 18.11 in (460mm)
Height: 7.68 in (195mm)
Wheelbase: 14.84 (377mm)
Ride Height: 1.85" (47mm)
Weight: 9.15lb (4.5kg)
Maximum Battery Tray Dimensions: 6.22 x 2.76 x 1.89" (158 x 70 x 49mm)
Body
Length: 18.6" (472mm)
Width: 8" (203mm) behind front wheels, narrowest point
Width: 10.03" (255mm) at rear wheels, widest point
Height: 6.25" (159mm)
