Aruba AP-504(RW) Unified Access Point

Aruba AP-504 (RW) Unified Access Point Enterprise Wi-Fi 6 Access Point

Model: APIN0504
Product Code: R2H22A
Software Version: 8.10.0.8

Description:

The Aruba AP-504 is a high-performance, dual-radio Wi-Fi 6 (802.11ax) access point designed to deliver enhanced capacity, efficiency, and security for high-density enterprise environments. It supports external antennas and can be deployed in controller-managed or controllerless (Instant) modes.

Key Specifications:

• Wi-Fi Standard: 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
• Maximum Data Rate: Up to 1.775 Gbps (574 Mbps @ 2.4 GHz + 1201 Mbps @ 5 GHz)
• Radios: Dual-radio (2.4GHz and 5GHz concurrent operation)

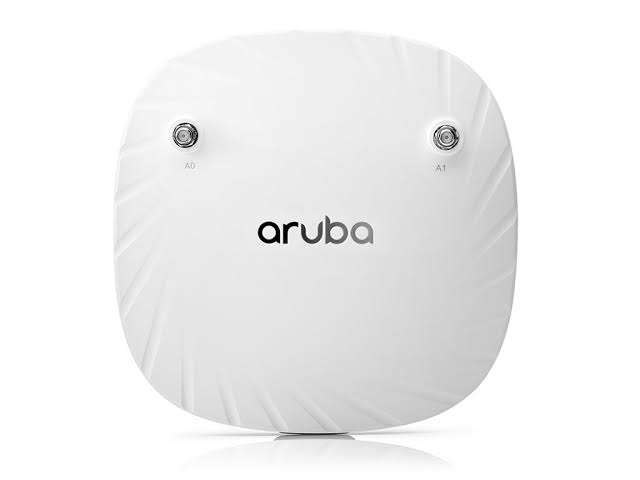

• Antenna Connectors: 2x RP-SMA connectors (A0 & A1) for external antennas
• Ethernet Interface: 1x 1/2.5GBASE-T Ethernet port with POE+ (802.3at) support
• Power: 48V DC via PoE (802.3af/at), or 12V DC (adapter not included)
• Mounting: Ceiling or wall-mount compatible
• Security: WPA3, Enhanced Open, WPA2, and legacy support
• Advanced Features:
  • OFDMA and MU-MIMO for multi-user performance
  • Integrated BLE and Zigbee radios (via optional USB port/module)
  • Aruba ClientMatch and AirMatch for RF optimization
  • Role-based access control and dynamic segmentation
• Deployment Modes: Controller-based (Aruba Mobility Controller) or Instant (controllerless)

Use Cases:
Ideal for business offices, education environments, healthcare facilities, warehouses, and high-density public venues.
