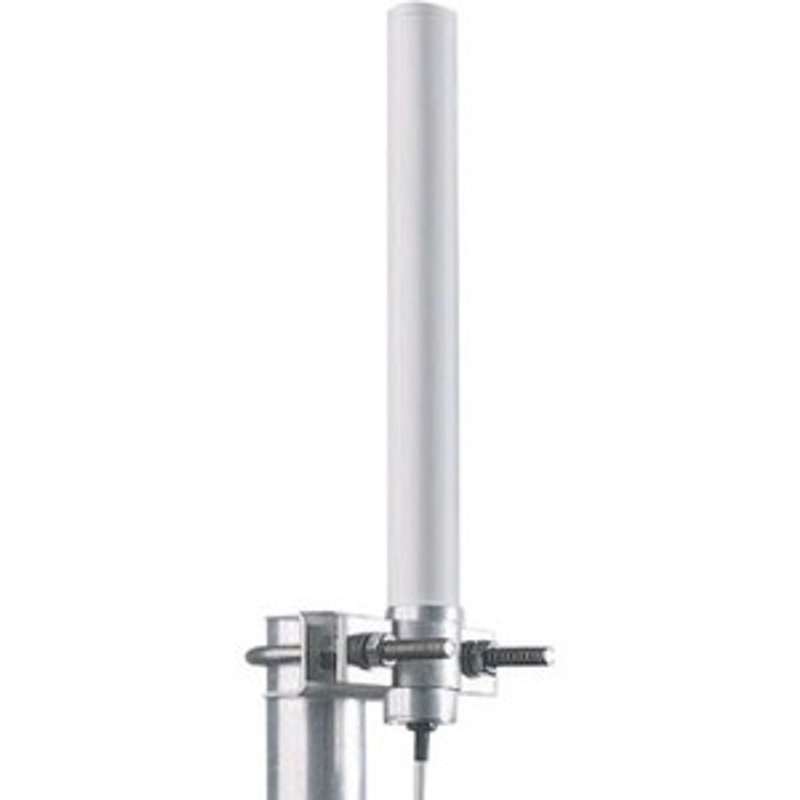

Aruba AP-ANT-19 - JW004A 2.4/5GHz 3/6dBi Omni Directional Antenna –

The Aruba AP-ANT-19 is a high-performance dual-band omni-directional antenna designed to extend wireless coverage in both indoor and outdoor environments. Operating on 2.4 GHz and 5 GHz frequency bands, it provides balanced gain of 3 dBi and 6 dBi respectively, enhancing signal strength for enterprise-grade Wi-Fi applications.

With a compact form factor and integrated 36-inch cable with RPSMA connector, this antenna is ideal for Aruba access points requiring versatile placement and consistent performance. Its weather-resistant construction and certified compliance make it a dependable choice for critical wireless deployments.

Key Features & Benefits

Dual-band operation (2.4 GHz and 5 GHz) for flexible Wi-Fi coverage
Omni-directional pattern ideal for broad signal distribution
3 dBi gain on 2.4 GHz and 6 dBi gain on 5 GHz for improved range
Suitable for indoor and outdoor use with robust temperature range
Integrated 36-inch cable with RPSMA connector for easy installation
Certified for CE and FCC compliance ensuring regulatory approval
Linear vertical polarization for consistent signal delivery
Lightweight and compact for discreet mounting

Ideal Uses

Enhancing wireless coverage in corporate campuses or warehouses
Expanding outdoor Wi-Fi networks in education or hospitality sectors
Supporting Aruba APs in complex building layouts or mesh setups
Upgrading access point antenna performance for consistent connectivity

Specifications

Condition: device has been unpacked and inspected, never deployed
Brand: Aruba
Model / Part Number: AP-ANT-19 / JW004A
Antenna Type: Omni-Directional
Frequency Bands: 2.4 GHz and 5 GHz
Gain: 3 dBi (2.4 GHz), 6 dBi (5 GHz)
Connector Type: RPSMA
Cable: Integrated, 36 inches (91.4 cm)
Color: White
Polarization: Linear, Vertical
VSWR: <2:1
Power Input (Max): 2 Watts
Usage Environment: Indoor and Outdoor
Operating Temperature: -40°C to +70°C
Dimensions: 200 × 20 × 20 mm
Mounting: Included
Certifications: CE, FCC
Warranty: 3 Month Carry-in Warranty

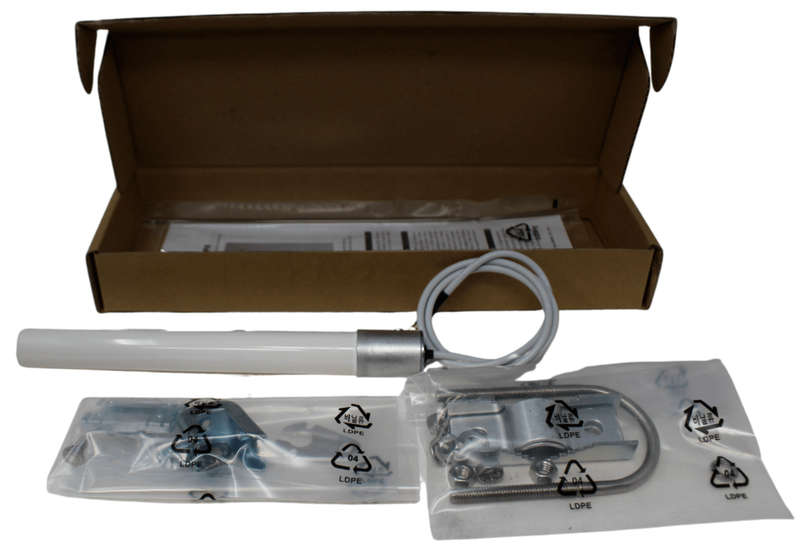

What's in the Box: Aruba AP-ANT-19 Antenna (JW004A)
