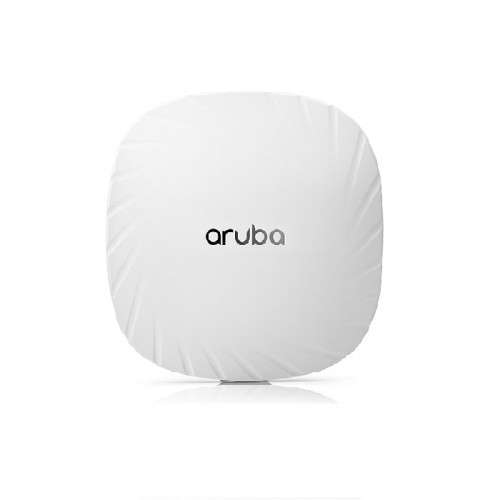

Aruba APIN0504
(AP-504)]() is a Wi-Fi 6 (802.11ax) indoor access point designed for medium-density environments such as offices, schools, and retail spaces. It supports dual-radio operation with 2x2 MIMO on both 2.4GHz and 5GHz bands, delivering a maximum combined data rate of up to 1.49 Gbps .
Key Specifications
Wi-Fi Standards: 802.11a/b/g/n/ac/ax
MIMO Configuration: 2x2:2 on both 2.4GHz and 5GHz bands
Maximum Data Rates:
2.4GHz: up to 574 Mbps
5GHz: up to 1.2 Gbps
Total Aggregate Throughput: Up to 1.49 Gbps
Client Capacity: Supports up to 256 associated client devices per radio
BSSIDs: Up to 16 per radio
Frequency Bands:
2.4GHz: 2.400 to 2.4835 GHz
5GHz: 5.150 to 5.850 GHz (country-specific restrictions apply)
Modulation Types: Supports up to 1024-QAM
OFDMA Support: Yes, for enhanced multi-user efficiency
MU-MIMO: Downlink MU-MIMO support
Security Features: WPA3, Enhanced Open, and support for Policy Enforcement Firewall (PEF)
IoT Support: Built-in Bluetooth 5 and Zigbee for IoT device connectivity
Power Options: Supports Power over Ethernet (PoE)
Physical Dimensions: 160mm (W) x 161mm (D) x 37mm (H)
Weight: Approximately 500g
The AP-504 is designed for environments requiring reliable and efficient wireless connectivity, offering features that enhance performance and security.
