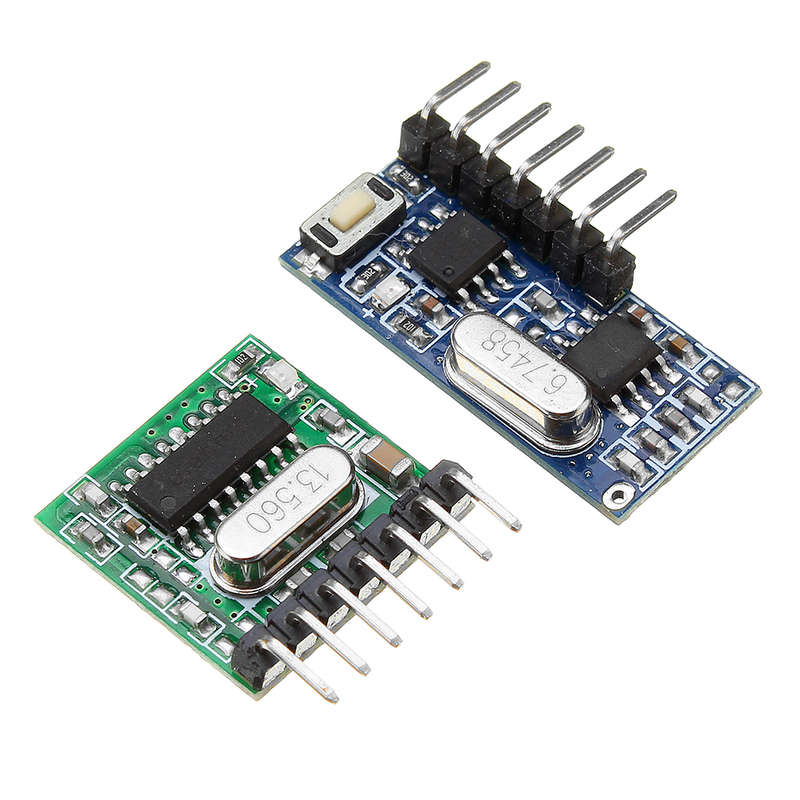

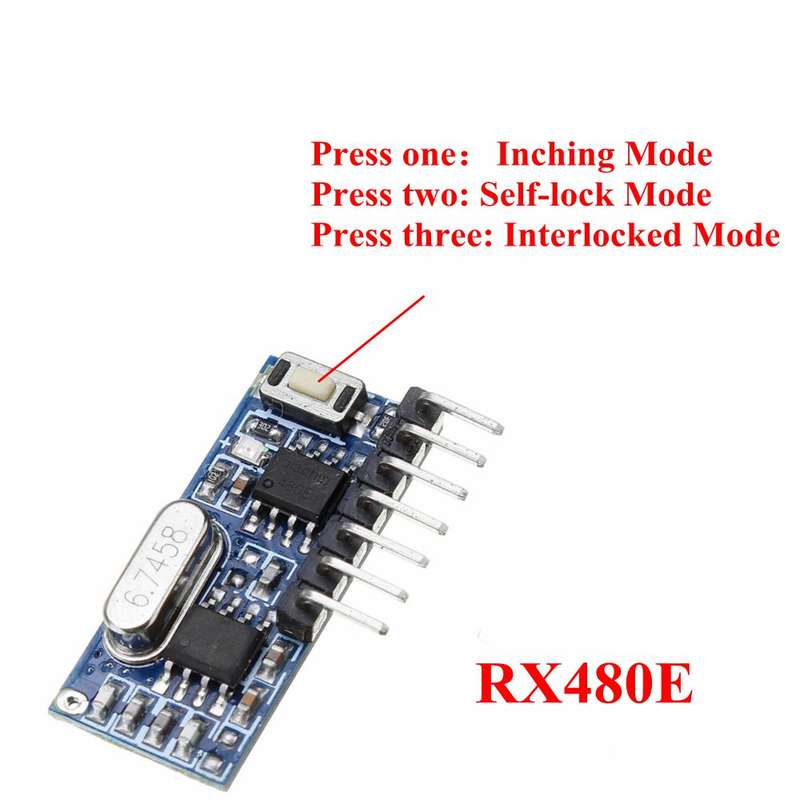

Features: The latest anti-lost code self-recovery function solves the trouble of losing code. The latest anti-interference software is involved to prevent accidental start Widely compatible, PT2262, PT2260, EV1527, PT2240, etc. Ultra-wide pulse width range: 105 to 515 oscillating resistors In jog mode: support combination code Self-locking mode: support combination code In the interlock mode: 4 independent open and close, the combination code is closed You can learn to store up to 24 different remote controls: 24. Up to seven function options: 1, jog 2, self-locking 3, interlock 4, two-way self-locking + two-way jog 5, two-way self-locking + two-way interlock 6, two-way jog + two-way interlock 7, two-way interlock + two-way interlock Clear: Press 8 to learn the code button and the LED goes out. After about 3 seconds, the LED flashes 3 times and clears OK. Learning the code: Press the learning button on the board, the LED lights up, and the learning button is released, and the learning pair code mode is entered. Press any button on the remote control, the LED flashes 3 times, the learning process is OK, and the system automatically exits the learning mode. If you enter the learning pair code mode, there is no remote control signal, and after 10 seconds, the learning pair code mode is automatically exited. Output Mode Explanation: 1, self-locking: Press the same remote control button, press once, the relay is on, press again, the relay is off. 2, interlock: Press the A button on the remote control and the relay will turn on. Press the B button on the remote control and the relay is off. 3. Jog: Press the aAa button on the remote control, the relay will open, release the aAa button on the remote control, and the relay will be off. If you keep pressing the A button on the remote control, the relay will remain on, when will the remote control be released, and when the relay will be turned off. Explanation of the use of LED output signal: When any button of the remote control is pressed, the receiving end decodes and correctly decodes, the LED will output a high level signal 1. When the remote control button is released, the LED output becomes 0.

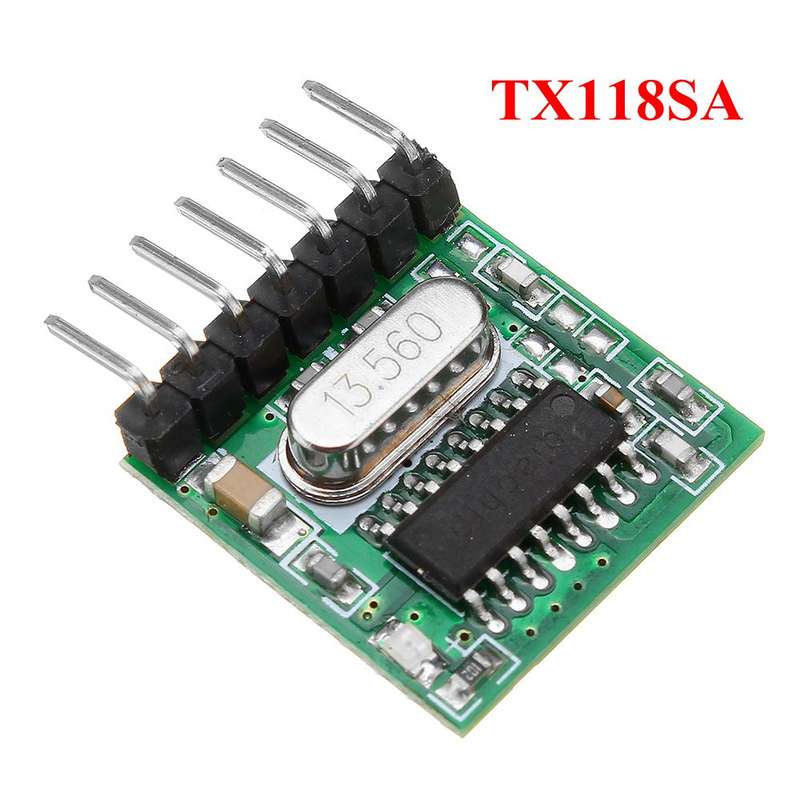

Model: TX118SA Transmitting power: 11dbm Distance: 100-200M Emission current: 10MA Standby current: less than 3UA Transmission rate: up to 10KB/S RF offset: +/- 7. 5KHZ / narrowband emission Modulation method: ASK Working voltage: DC 3V-18V Optional fixed coding type: PT2262/EV1527/HT6P20B Customizable special code: MCU type. Standby current: <3UA Button data: A, B, C, D a total of 4 groups of inputs, can be combined into 15 groups. Each module has a separate ID address code All the four key codes of the modules K1 - K4 are the same. Foot description: -: negative power supply +: Positive power supply, DC 3-18V K1: External input button, short-circuit to ground to start transmitting data 1, which is equivalent to the A button of the remote control. K2: External input button, short-circuit to ground to start transmitting data 2, equivalent to the B button of the remote control. K3: External input button, short-circuit to ground to start transmitting data 3, equivalent to the C key of the remote control. K4: External input button, short-circuit to ground to start transmitting data 4, equivalent to the D button of the remote control. ANT: Transmitting antenna
Note: (1) This product is a CMOS device and should be protected against static electricity during storage, transportation and use. (2) The device should be grounded well when in use.
