ASRock B760M Pro RS WiFi Intel LGA 1700 Micro-ATX Motherboard
The ASRock B760M Pro RS WiFi is a versatile Intel B760 motherboard designed for mainstream gaming, productivity and everyday PC builds. It supports compatible 14th, 13th and 12th Generation Intel Core processors, combining DDR5 memory support, PCIe 5.0 graphics expansion and three PCIe 4.0 M.2 storage slots in a space-efficient Micro-ATX format.
Performance for a Modern Intel Build

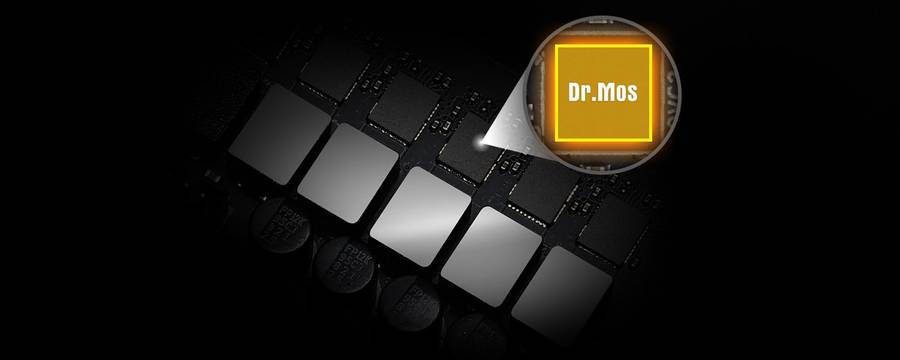

A 7+1+1 power-phase design with Dr.MOS for VCore and GT supports dependable power delivery to compatible LGA 1700 processors. The six-layer PCB helps provide stable signal routing, while four DDR5 DIMM slots support dual-channel memory configurations with speeds of up to 7200+ MHz when overclocked using compatible components.
Fast Graphics and Storage Expansion
The primary PCIe 5.0 x16 slot provides a high-bandwidth connection for a compatible graphics card and uses a reinforced steel design to help support heavier cards. Three Hyper M.2 sockets support PCIe 4.0 x4 NVMe solid-state drives, while four SATA 6 Gb/s connectors accommodate additional storage devices.
Flexible Wired and Wireless Networking
Dragon 2.5 Gigabit Ethernet provides a faster wired connection for gaming, streaming, file transfers and backups on compatible networks. Integrated Intel Killer Wi-Fi 6E offers dual-band 2x2 wireless connectivity with 160 MHz channel support, complemented by Bluetooth 5.3 for compatible peripherals.
Access to the Wi-Fi 6E 6 GHz band requires Microsoft Windows 11, a compatible 6 GHz router and regional availability.
Convenient Connectivity and Personalisation
Rear connectivity includes USB Type-C, USB Type-A, HDMI, DisplayPort, 2.5 Gigabit Ethernet and three audio jacks. A front-panel USB Type-C header provides convenient access when paired with a compatible chassis, while onboard RGB and addressable RGB headers support compatible lighting devices through ASRock Polychrome Sync.
Key Features:
- Supports compatible 14th, 13th and 12th Generation Intel Core processors using the LGA 1700 socket.
- Four DDR5 DIMM slots support up to 256 GB of dual-channel memory and Intel XMP 3.0 profiles.
- PCIe 5.0 x16 graphics slot provides high-bandwidth expansion for a compatible graphics card.
- Three PCIe 4.0 x4 Hyper M.2 sockets and four SATA connectors offer flexible storage options.
- Integrated Wi-Fi 6E, Bluetooth 5.3 and Dragon 2.5 Gigabit Ethernet support flexible networking.
- Realtek ALC897 7.1-channel HD audio is enhanced by Nahimic Audio software.
- Pre-installed I/O shield and ASRock Auto Driver Installer help simplify system assembly and setup.
Technical Specifications:
| Specification | Details |
| Brand | ASRock |
| Model | B760M Pro RS WiFi |
| Product Type | Intel Micro-ATX motherboard |
| Chipset | Intel B760 |
| CPU Socket | Intel LGA 1700 |
| Processor Support | Compatible 14th, 13th and 12th Generation Intel Core processors |
| Power Design | 7+1+1 power phases with Dr.MOS for VCore and GT |
| Memory | 4 x DDR5 DIMM slots; dual-channel; non-ECC, unbuffered memory |
| Maximum Memory | Up to 256 GB |
| Memory Speed | Up to DDR5 7200+ MHz (OC), depending on the processor, memory configuration and compatible modules |
| Memory Profiles | Intel Extreme Memory Profile (XMP) 3.0 |
| Graphics Expansion | 1 x PCIe 5.0 x16 slot |
| Additional Expansion | 1 x PCIe 3.0 x16-length slot operating at up to x4; 1 x M.2 Key-E socket used by the integrated Wi-Fi/Bluetooth module |
| M.2 Storage | 3 x Hyper M.2 PCIe 4.0 x4 sockets |
| SATA Storage | 4 x SATA 6 Gb/s connectors |
| RAID Support | RAID 0, 1, 5 and 10 for SATA storage devices |
| Display Outputs | 1 x HDMI 2.1 TMDS-compatible output; 1 x DisplayPort 1.4 with DSC |
| Maximum Display Support | HDMI: up to 4K at 60 Hz; DisplayPort: up to 8K at 60 Hz or 5K at 120 Hz |
| Integrated Graphics Requirement | Motherboard display outputs require a processor with integrated graphics |
| Audio | Realtek ALC897 7.1-channel HD Audio Codec with Nahimic Audio |
| Wired Networking | Dragon RTL8125BG 2.5 Gigabit Ethernet |
| Wireless Networking | Intel Killer Wi-Fi 6E, IEEE 802.11a/b/g/n/ac/ax/axe, dual-band 2x2 and 160 MHz support |
| Bluetooth | Bluetooth 5.3 |
| Rear USB Ports | 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1 Type-A and 2 x USB 2.0 |
| Front USB Support | 1 x USB 3.2 Gen 1 Type-C header, 1 x USB 3.2 Gen 1 header for two Type-A ports and 2 x USB 2.0 headers for four ports |
| Other Rear Connections | 2 x antenna ports, 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port and 3 x audio jacks |
| Lighting Headers | 1 x RGB LED header and 3 x addressable LED headers |
| Cooling Connections | 1 x CPU fan, 1 x CPU/water-pump fan and 4 x chassis/water-pump fan connectors |
| Operating System Support | Microsoft Windows 10 64-bit and Windows 11 64-bit |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 x 24.4 cm |
| Box Contents | Motherboard, user manual, 2 x SATA data cables, 2 x Wi-Fi antennas, 3 x M.2 screws and 1 x M.2 standoff |
Build a capable Intel-based gaming or productivity system with flexible storage, networking and expansion options, and add the ASRock B760M Pro RS WiFi to your cart today.
