Meet the ASRock B850 Pro RS Wi-Fi Motherboarda no-compromise platform engineered for next-generation AMD performance, precision tuning, and seamless connectivity. Built on the robust AMD B850 chipset, this ATX motherboard is tailor-made for Ryzen 9000, 8000, and 7000 Series processors, delivering exceptional compatibility and headroom for creators, gamers, and power users alike.
From the moment you power up, the ASRock B850 Pro RS Wi-Fi Motherboard asserts its prowess with a fortified 14+2+1 phase power design featuring 80A Dr.MOS and an 8-layer PCB that promotes thermal efficiency and rock-solid voltage delivery. Whether you're pushing memory to 8000+ MHz or fine-tuning every watt, this board is primed for precision overclocking and long-haul durability.
Connectivity is where this board truly shines. It offers one PCIe 5.0 x16 slot reinforced with steel, complemented by support for blazing-fast Gen5 and Gen4 M.2 storage. You get up to four M.2 slots and four SATA3 ports, optimised for high-speed NVMe boot drives and bulk storage alike. A 2.5G Realtek Dragon LAN ensures lightning-fast wired networking, while onboard Wi-Fi 6E with Bluetooth 5.2 futureproofs your wireless experiencejust make sure you're running Windows 11 to unlock the full 6GHz spectrum.
The ASRock B850 Pro RS Wi-Fi Motherboard is also a DIYer's dream. Features like BIOS Flashback, a flexible I/O shield, reinforced PCIe slots, and the ASRock Post Status Checker make installation and troubleshooting easier than ever. Meanwhile, SignalRGB support and Polychrome RGB headers provide customisable lighting that syncs beautifully across your build.
Whether you're upgrading for gaming, content creation, or future-ready productivity, the ASRock B850 Pro RS Wi-Fi Motherboard delivers a perfect blend of high-end performance, intelligent design, and next-gen technology. It's not just a motherboard, it's a foundation for your next big build.
FEATURES
AMD AM5 socket supports Ryzen 9000, 8000G, and 7000 Series processors
PCIe 5.0 x16 Steel Slot for next-gen GPU bandwidth and durability
Blazing-fast Wi-Fi 6E and 2.5G LAN for ultra-low-latency connectivity
Supports DDR5 memory overclocking up to 8000+ MHz for extreme performance
Four M.2 slots, including one Hyper Gen5 x4 for lightning-fast NVMe storage
14+2+1 phase Dr.MOS power design ensures stable power delivery under load
BIOS Flashback and Post Status Checker streamline setup and troubleshooting
SignalRGB and Polychrome SYNC for vivid, addressable lighting control
Reinforced ATX form factor with 8-layer PCB enhances thermal and signal efficiency
Compatible with Windows 11 to unlock full Wi-Fi 6E 6GHz band support
SPECIFICATIONS
CPU & Chipset
Socket: AMD AM5
Supported CPUs: Ryzen 9000 / 8000G / 7000 Series
Chipset: AMD B850
Memory
4 x DDR5 DIMM slots, dual-channel architecture
Up to 256GB of system memory supported
Supports DDR5 ECC/non-ECC, unbuffered
Memory speeds: Up to 8000+ MHz (OC)
Supports AMD EXPO & Intel XMP profiles
Graphics Output
1 x HDMI 2.1 (4K@120Hz)
1 x USB 3.2 Gen1 Type-C (DP 1.4 Alt Mode, 4K@60Hz)
Integrated AMD RDNA graphics (depends on CPU)
Expansion Slots
1 x PCIe 5.0 x16 (Steel Slot, from CPU)
1 x PCIe 4.0 x16 (x4 mode, from chipset)
Storage
1 x Blazing M.2 (Gen5x4, 2280 CPU)
2 x Hyper M.2 (Gen4x4, 2280 / 22302280 CPU & Chipset)
1 x Ultra M.2 (Gen3x4, 2280 Chipset)
4 x SATA3 6.0 Gb/s ports (2 via chipset, 2 via ASMedia ASM1061)
RAID 0, 1 (SATA), RAID 0, 1, 10 (M.2 NVMe)
Networking
LAN: Realtek Dragon RTL8125BG 2.5 GbE
Wireless: Wi-Fi 6E (802.11axe) with Bluetooth 5.2
Dual-band 2x2 support with 6GHz band (Windows 11 only)
USB Ports
Rear I/O
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1 Type-C (DP-alt mode)
4 x USB 3.2 Gen1 Type-A
6 x USB 2.0
Internal Headers
1 x USB 3.2 Gen2x2 Type-C (20 Gb/s)
4 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Audio
Realtek ALC897 7.1 CH HD Audio Codec
Enhanced by Nahimic Audio
Features: Echo cancellation, noise reduction, Sound Tracker
Power Design
14+2+1 Phase Dr.MOS Power Delivery (80A)
Hi-Density 24-pin ATX + Dual 8-pin 12V connectors
8-layer PCB for improved thermals and power flow
Cooling & Thermal
Aluminium VRM heatsink
Oversized M.2 heatsinks with anti-drop screws
M.2 bottom heatsink integrated into PCB
2 x CPU fan headers
4 x Chassis fan headers
1 x AIO pump header
Smart Fan Speed Control (up to 3A/36W per header)
RGB & Aesthetics
ASRock Polychrome RGB & SignalRGB support
1 x RGB LED header (12V)
3 x Addressable RGB headers (5V)
DIY Features
BIOS Flashback (CPU-less BIOS update)
ASRock Post Status Checker
Auto Driver Installer (via LAN)
Reinforced PCIe Steel Slot
Flexible, adjustable I/O shield

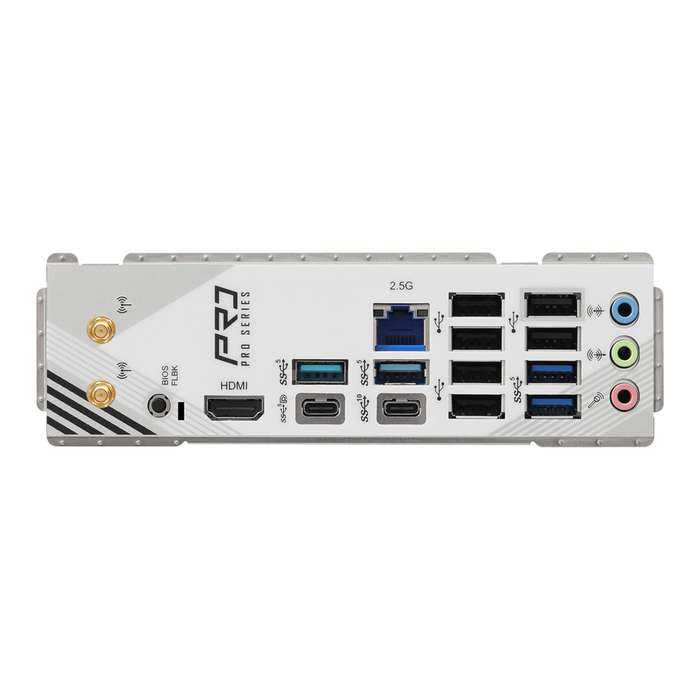

Rear I/O Ports
1 x HDMI
2 x Antenna connectors
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A
6 x USB 2.0
1 x RJ-45 (2.5G LAN)
3 x Audio jacks (Line-in, Front speaker, Mic)
1 x BIOS Flashback button
Software & UEFI
ASRock UEFI BIOS (Full HD, EZ Mode)
ASRock A-Tuning, Polychrome SYNC, Dragon LAN
Auto Driver Installer, Instant Flash
Form Factor
ATX Form Factor (30.5 cm x 24.4 cm)
8-layer PCB design
OS Compatibility
Microsoft Windows® 11 64-bit (Wi-Fi 6E full support)
Microsoft Windows® 10 64-bit (no 6GHz Wi-Fi band)
Certifications
FCC, CE, ErP/EuP Ready
WHAT'S IN THE BOX
ASRock B850 Pro RS Wi-Fi ATX Motherboard x1
SATA Data Cables x2
ASRock WiFi 2.5/5/6 GHz Antennas x2
