ASRock DESKMINI B660W Barebone - LGA1700 Socket

The AsRock DeskMini B660 Series supports the lastest 13th Gen Intel® Core Processors delivering the ultimate computing performance in a smaller PC form factor. The latest processors from Intel deliver the ultimate performance for multitasking computing compared to mobile processors. The DeskMini B660 also supports Dual Channel DDR4-3200MHz high-speed memory, up to 64GB, this allows you to complete your tasks with ease and efficiency. The DeksMini B660 even supports Intel® Optane memory technology and Intel® Optane storage technology to allow it to redefine a new standard of high performance and responsiveness. All of your apps and programs will load with lightning speed which allow you to work or game faster than ever.

A USB 3.2 Gen2 Type-C with alternate mode is available on the rear I/O, offering a high-resolution DisplayPort signal, an incredible 60-watt power delivery, and a 10Gbps data transfer rate. The latest USB 3.2 Gen2x2 Type-C delivers up to 20Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. The DeskMini B660 supports a USB 3.2 Gen2 Type-A in the front panel, delivering 10Gbps speedy data transfer rate. In addition, the DeskMini B660 brings 4 x USB Type-A ports on the rear I/O for all of your peripherals. Up to four video outputs can be used simultaneously for productivity and multitasking. DisplayPort 1.4 ports allow you to enjoy Ultra HD content on an 8K monitor or TV.

FEATURES:

• Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700), up to 65W
• Dual DDR4-3200MHz SO-DIMMs, up to 64GB
• Multi Video Outputs：1 x DisplayPort, HDMI & D-Sub
• 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
• 1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
• 1 x Blazing M.2 (PCIe Gen5 x4) Slot
• 1 x Hyper M.2 (PCIe Gen4 x4) Slot
• 2 x 2.5" HDD/SSD with RAID 0/1
• 1 x M.2 Key-E for Wi-Fi

SPECIFICATIONS:

• CPU: Supports Intel® 13th Gen & 12th Gen Intel® Core Processors (LGA1700), Max. TDP 65W
• Cooler: Supports Intel® CPU Cooler (Max. Height 47mm)
• Memory: Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
• Chipset: Intel® B660
• Graphics: HDMI (4K@60Hz), DisplayPort 1.4, DisplayPort 1.4 (over USB Type-C Alt Mode), D-Sub, Supports up to 4 displays simultaneously
• Audio: Realtek ALC269 Audio Codec
• Storage: 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1), 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, Supports Intel® Optane Technology, Supports NVMe SSD as boot disks, Supports Intel® Volume Management Device (VMD)
• LAN: Gigabit LAN (Intel® I219V)
• WLAN: 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)
• Front I/O: 1 x MIC-In, 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x Head Phone with MIC Jack

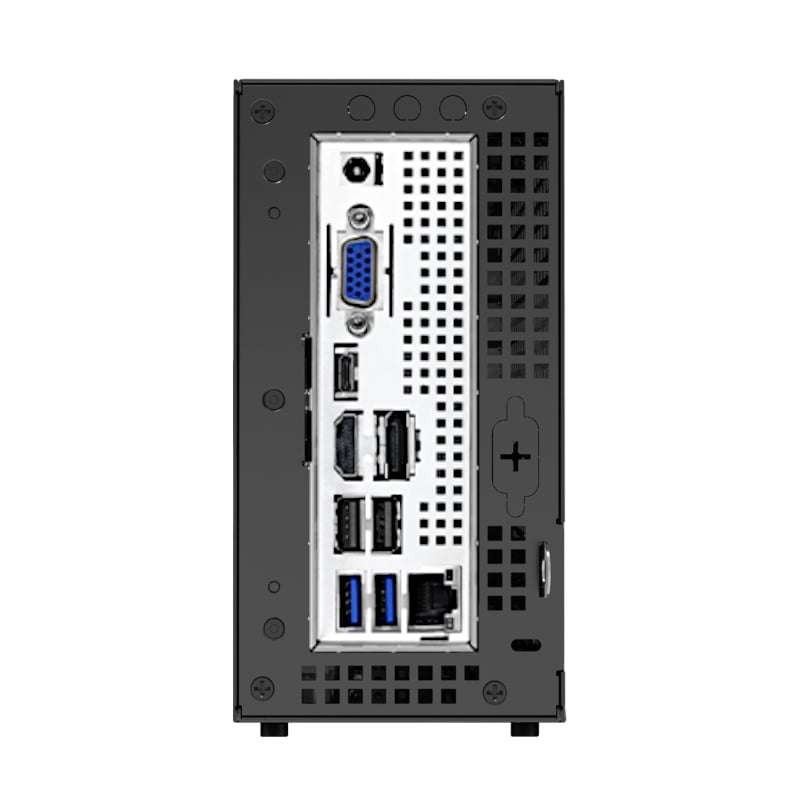

• Rear I/O: 1 x DC-In Jack (Compatible with the 19V power adapter), 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode), 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED
• Connectors: 1 x USB 2.0 Header, 1 x Front Panel Header, 2 x 4-Pin fan connectors (CPU, SYS), 1 x Internal Speaker Header (4-Pin), 1 x Audio Header (4-Pin)
• Accessory: 2 x SATA Data with Power Cable, 1 x 120W/19V adapter, 1 x Screws Pack, 1 x Intel® AC-3168 Wi-Fi Kit
• OS: Microsoft® Windows® 10 64-bit / 11 64-bit
• Product Dimensions: 15.5 x 15.5 x 8 cm

WHAT'S IN THE BOX:

• AsRock DeskMini B600 Barebone Desktop PC - Black x1
