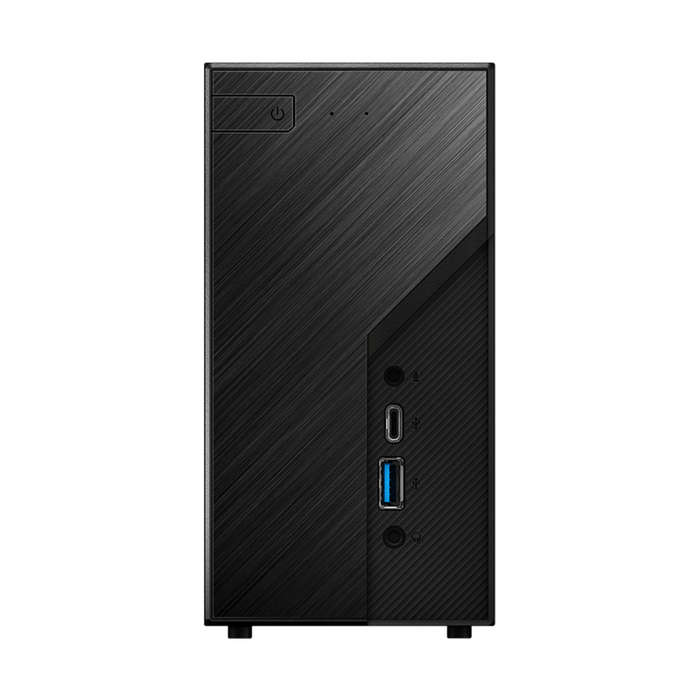

The ASRock DeskMini X300 Series supports the latest AMD Ryzen 5000 G-Series desktop processors. With up to 8 cores and 16 threads, these processors deliver the ultimate performance for multitasking computing compared to mobile processors. In addition, with AMD Ryzen 5000 G-Series desktop processors, you get the world's fastest integrated graphics.
The ASRock DeskMini X300 supports many overclocking options, so you can improve system performance by tuning the core clock and releasing the potential of the AM4 APU. The DeskMini supports Dual Channel DDR4-4000+MHz (OC) memory, up to 64GB. Thanks to its high-speed memory and Radeon Graphics, the DeskMini provides amazing 3D performance.
The DeskMini X300 features an Aluminum MOSFET Heatsink which provides great heat dissipation to ensure excellent performance for overclocking and system stability in daily computing. It supports up to 4 Storage devices, including an M21 M.2 (2280)-PCIe Gen3 x4, M22 M.2 (2280) PCIe Gen3 x2/x4 and 2x 2.5" SATA 6Gb SSD/HDD Trays. In addition to this, it also supports RAID 0/1. Build a mini data center at home thanks to the Deskman's supported RAID 0/1 function. RAID 0 offers superior I/O performance, and RAID 1 protects critical data in a mirrored data mode.
For versatility, the DeskMini supports 3 display outputs simultaneously, allowing you to expand your desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Please note that the CPU, memory, and HDD/SSD are not included.
FEATURES:
Mini Desktop Barbone PC
AMD X300 Chipset
Supports AMD AM4 Socket CPUs
AM4 Cooler Max Height ?46mm
Supports 2 x SO-Dimm DDR4 Memory up to 64GB
HDMI, DisplayPort, and D-Sub Video Outputs
Type-C and USB 3.2 ports
Ultra M.2(2280) Support
Gigabit LAN, Wi-Fi, and Bluetooth Support
SPECIFICATIONS:
CPU: Supports AMD AM4 Socket CPUs (Cezanne, Renoir, Picasso, Raven Ridge, up to 65W)
Cooler: Supports AMD AM4 CPU Cooler (Max. Height ? 46mm)
Memory:
Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
AMD Ryzen 5000/4000 series 3200MHz
AMD Ryzen 3000/2000 series 2933MHz
Chipset: AMD X300
Graphics Output:
HDMI(4K @60Hz)
DisplayPort, D-Sub
Audio
1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)
Front USB
1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
Rear USB
1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A
Storage
2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
1 x Ultra M.2 (2280) Slot
PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
PCIe Gen3 x2 (Athlon 2xxGE series APU)
LAN: Gigabit LAN (RealtekRTL8111H)
WLAN: 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors:
1 x USB 2.0 Header
1 x Front Panel Header
2 x 4-Pin fan connectors (CPU, SYS)
1 x DC-In Jack (Supports 19V Power Adapters)
1 x Internal Speaker Header (4-Pin)
1 x Chassis Intrusion Header (2-Pin)
1 x Audio Header (4-Pin)
Dimensions: 15.5 x 15.5 x 8 cm
What's in the box
1 x ASRock DeskMini X300W Barebone Mini-ITX Mini PC
