Platform - Size: 4.3-in x 3.0-in, 11.0 cm x 7.5 cm
- Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
Chipset - Creative Sound Core3D quad-core sound and voice processor
- Powerful 32-bit 200Mhz QUAD-Processor SIMD DSP
- 102dB 24-bit DAC
- 101dB 24-bit ADC
Output Features - Supports Stereo / 2.1 Speakers / 5.1 Surround / 7.1 Surround-EX / Headphones
- Front Panel Headphone Out with built-in amplifier (shared with jack 4)
- Coaxial SPDIF Out Port
- Optical SPDIF Out Port
Input Features - Line in / MIC in shared with 1/8" mini jack (jack 3)
- Microphone in with front audio panel
Audio - Supports CrystalVoice
- Supports Scout Mode
- Supports EAX1.0 to EAX5.0
- Supports Full Blu-ray Profile 2.0 Audio Decoder
- Supports Premium Headset Amplifier (PHA)
- Supports Blu-ray Audio
- Supports AES-128 Encryption / Decryption Engine
LAN - Broadcom BCM57781
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function (for motherboards with Broadcom LAN)
- Supports PXE

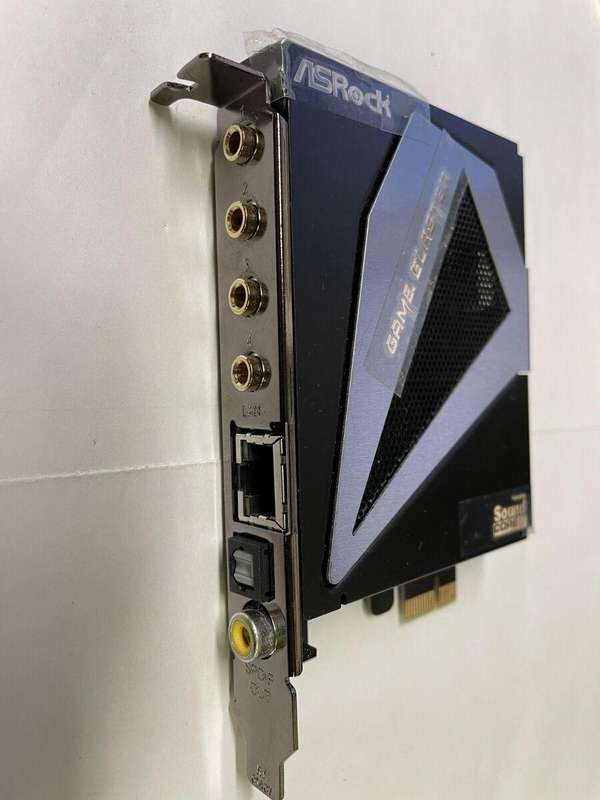

Rear Panel I/O I/O Panel
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 4 x 1/8" mini jacks
Connector - 1 x HDMI_SPDIF header
- 1 x Front panel audio connector
OS - Microsoft® Windows® 7 / 7 64-bit / Vista / Vista 64-bit compliant
IMPORTANT: THE SOUNDCARD WORKS ONLY WITH ASROCK X79, Z77 AND H77 MOTHERBOARDS!
