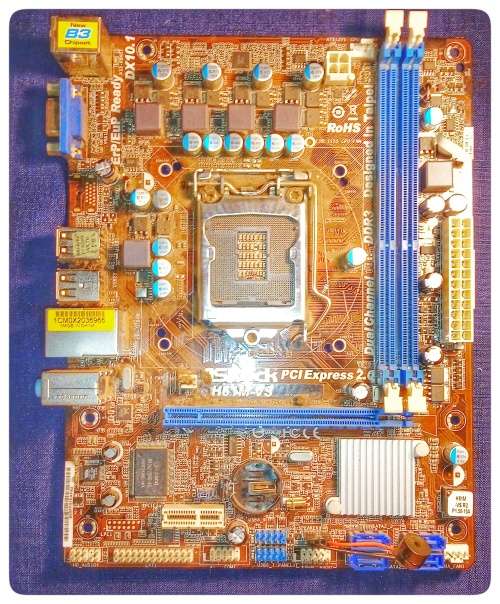

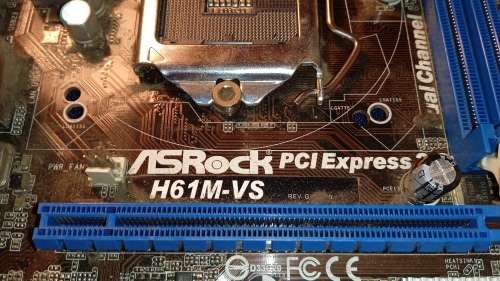

ASROCK H61M VS Motherboard

- Supports 3^rd and 2^nd Generation Intel^® Core™ i7 / i5 / i3 / Xeon^® / Pentium^® / Celeron^® in LGA1155 Package
- Supports Intel^® Turbo Boost 2.0 Technology
- Supports Hyper-Threading Technology

Chipset

- Intel^® H61
- Supports Intel^® Rapid Start Technology and Smart Connect Technology

*Intel^® Rapid Start Technology and Smart Connect Technology are only supported under Windows^® 7 OS or later versions.

Memory

- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel^® Ivy Bridge CPU

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

**The highest supported DRAM frequency depends on the CPU you've installed. For detailed CPU specifications, please refer to Intel^® official website.

***In order to maximize the system memory, please install 8GB memory module with 16 cells

BIOS

- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment

Graphics

- Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video 2.0, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 2500/4000 with Intel^® Ivy Bridge CPU
- Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® HD Graphics 2000/3000, Intel^® Advanced Vector Extensions (AVX) with Intel^® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel^® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel^® Sandy Bridge CPU.
- Max. shared memory 1760MB with Intel^® Ivy Bridge CPU. Max. shared memory 1759MB with Intel^® Sandy Bridge CPU.
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

*Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Intel^® InTru™ 3D is only supported under Windows^® 7 and Windows^® 7 x64.

Audio

- 5.1 CH HD Audio (VIA^® VT1705 Audio Codec)

LAN

- Atheros^® PCIEx1 LAN AR8152
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE

Slots

- 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot

*PCIe Gen3 is supported on 3^rd Generation of Intel^® Core™ i5 and Core™ i7 CPUs.

Connector

- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - Trial
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU, Chassis, Power Fan Tachometer
- CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU, Chassis Fan multi-speed control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 8.9-in x 6.8-in, 22.6 cm x 17.3 cm
- Solid Capacitor for CPU power
