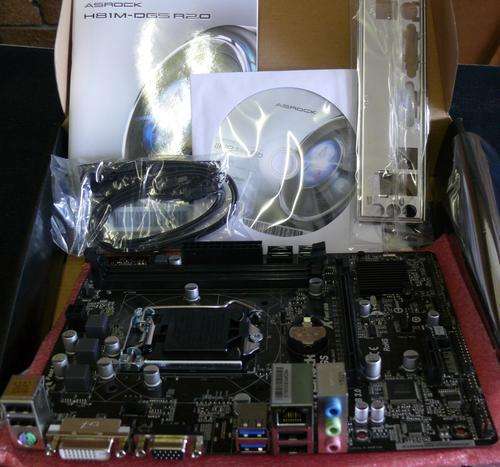

ASRock H81M-DGS R2.0 Socket 1150

All Solid Capacitor
CPU
Supports 4th generation Intel CoreTM i7/i5/i3/Xeon/
Pentium/Celeron in LGA1150 Package
Supports Intel Turbo Boost 2.0 Technology
Chipset Intel H81
Memory
Dual Channel DDR3 Memory Technology
2x DDR3 DIMM Slots
Supports DDR3 1600/1333/1066 non-ECC, un-bufered
memory
Maxmemory: 16GB
Supports Intel Extreme Memory Proile (XMP)1.3/1.2
Expansion
1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
1 x PCI Express 2.0 x1 Slot
Graphics Intel HD Graphics Built-in Visuals and the VGA outputs can
be supported only with processors which are GPU integrated.
Supports IntelHD Graphics Built-in Visuals : Intel Quick
Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel InTruTM 3D, Intel Clear Video HD
Technology, Intel InsiderTM, Intel HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
Max. shared memory 1792MB
Dual VGA output: support DVI-D and D-Sub Ports by
independent display controllers
Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
H81M-DGS R2.0
Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
Supports HDCP function with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D
Port
Audio 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111G
Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Eicient Ethernet 802.3az
Supports PXE
Rear Panel
I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
HD Audio Jack: Line in/Front Speaker/Microphone
Storage 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and
Hot Plug
2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and
Hot Plug
Connector 1 x IR Header
1 x Print Port Header
1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
BIOS
32Mb AMI UEFI Legal BIOS with Multilingual GUI support
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Support
CD
Drivers, Utilities, AntiVirus Sotware (Trial Version), Google
Chrome Browser and Toolbar, Start8
Hardware
Monitor
CPU/Chassis temperature sensing
CPU/Chassis/Power Fan Tachometer
CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
CPU/Chassis Fan multi-speed control
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS Microsot Windows 8.1 32-bit/8.1 64-bit/8 32-bit/8 64-
bit/7 32-bit/7 64-bit
Certiications
• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
