Description

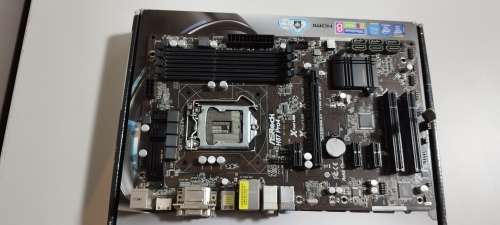

ASRock 970A-G46 ATX Motherboard
Socket LGA1150
A compatible CPU, RAM, Graphics card and CPU Cooler are among my other listings.

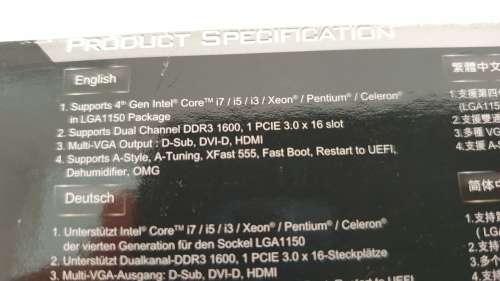

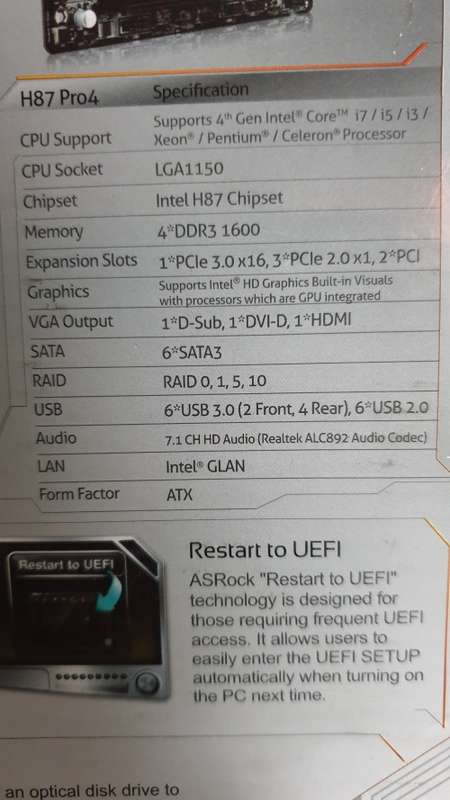

Specifications:
Detailed specs at
Supports 4th Generation Intel® Xeon® / Core i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Chipset - Intel® H87
Memory - Dual Channel DDR3/DDR3L memory technology - 4 x DDR3/DDR3L DIMM slots - Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Graphics - Supports Intel® HD Graphics Built-in Visuals
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Gigabit LAN 10/100/1000 Mb/s
Slots
- 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)
- 3 x PCI Express 2.0 x1 slots
- 2 x PCI slots
Storage - 6 x SATA3 6.0 Gb/s connectors
Connector
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports
- 4 x USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
