ASRock H87M Socket 1150 M-ATX Motherboard

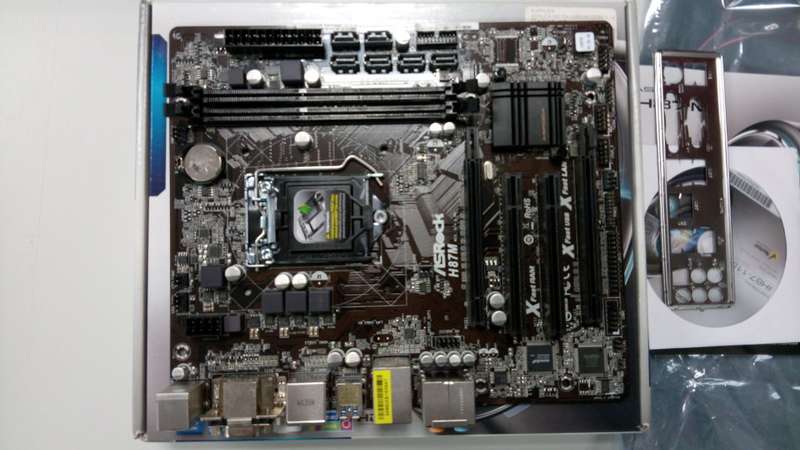

ASRock H87M

Supported CPU
CPU Socket Type
LGA 1150
CPU Type
4th Generation Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron (LGA1150)
Supported CPU Technologies
Turbo Boost Technology 2.0

Chipsets
Chipset
Intel H87

Memory
Number of Memory Slots
2×240pin
Memory Standard
DDR3 1600/1333/1066
Maximum Memory Supported
16GB
Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
PCI Express 2.0 x16
1(running at x4)
PCI Slots
2 x PCI Slots

Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
SATA RAID
0/1/5/10

Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
7.1 Channels

Onboard LAN
LAN Chipset
Qualcomm Atheros AR8171
Max LAN Speed
10/100/1000Mbps

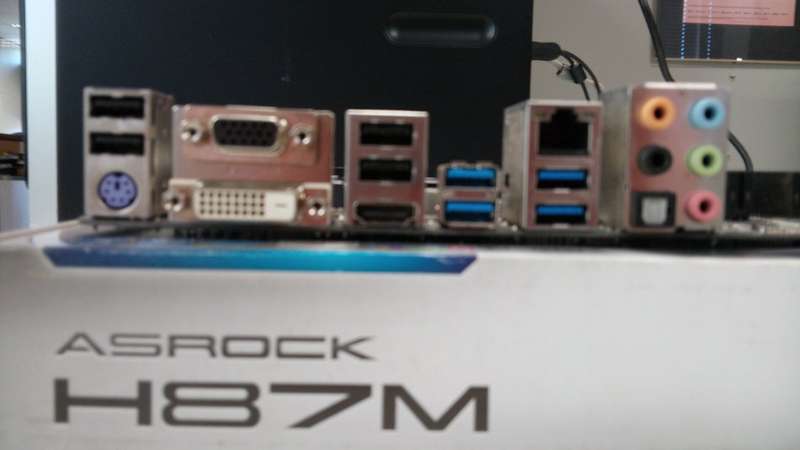

Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 3.0
4 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
5 Ports

Internal I/O Connectors
Onboard USB
2 x USB 2.0 headers (support 4 USB 2.0 ports)
1 x USB 3.0 header (supports 2 USB 3.0 ports)
Other Connectors
1 x IR header
1 x Print Port header
1 x COM Port header
1 x Chassis Intrusion header
1 x TPM header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
1 x Power Fan connector (3-pin)
1 x 24 pin ATX power connector
1 x 8 pin 12V power connector
1 x Front panel audio connector
1 x SPDIF Out connector

Physical Spec
Form Factor
Micro ATX
Power Pin
24 Pin

Features
Features
A-Style : Home Cloud

Supports 4th Gen Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1150 Package

Supports Intel Small Business Advantage 2.0

All Solid Capacitor design

Supports Dual Channel DDR3 1600

1 x PCIe 3.0 x16, 1 PCIe 2.0 x16

Supports AMD Quad CrossFireX, CrossFireX

Multi VGA Output Options : DVI-D, D-Sub, HDMI

Qualcomm Atheros Gigabit LAN

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

6 x SATA3, 6 x USB 3.0, 8 x USB 2.0

Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
