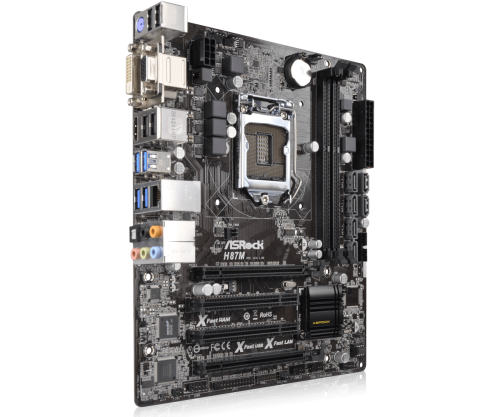

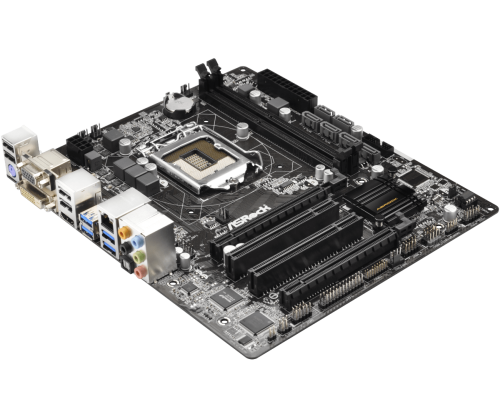

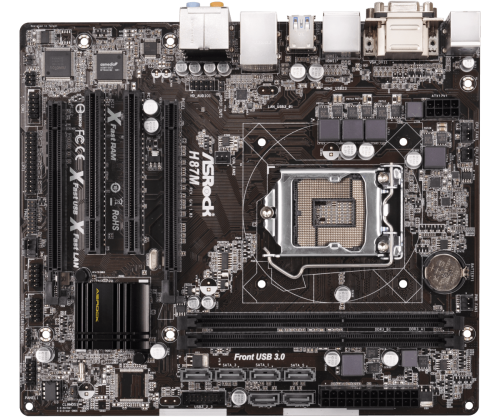

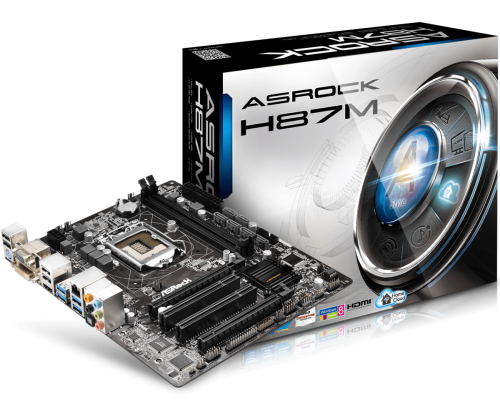

ASRock H87M

New 1 was available
Indicative market price: R2,500.00
R1,700.00
32% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Socket
LGA 1150
Form Factor
Micro ATX
Brand
ASRock
Customer ratings:
Product code
H87MBOARD
Bob Shop ID
402996608

PPlease note that this item has been opened but has never been used


  • A-Style
    - ASRock Cloud
  • CPU
    - Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
    - 4 Power Phase Design
    - Supports Intel® Turbo Boost 2.0 Technology
  • Chipset
    - Intel® H87
    - Supports Intel® Small Business Advantage 2.0
  • Memory
    - Dual Channel DDR3/DDR3L memory technology
    - 2 x DDR3/DDR3L DIMM slots
    - Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
    - Max. capacity of system memory: 16GB*
    - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
    - ACPI 1.1 Compliance Wake Up Events
    - SMBIOS 2.3.1 Support
    - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
  • Graphics
    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
    - Pixel Shader 5.0, DirectX 11.1
    - Max. shared memory 512MB*
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
    - Supports HDCP function with DVI-D and HDMI ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports

    *The size of maximum shared memory may vary from different operating systems.

    **Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    - Premium Blu-ray audio support
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Qualcomm® Atheros® AR8171
    - Supports Qualcomm® Atheros® Security Wake On Internet Technology
    - Supports Wake-On-LAN
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
    - 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
    - 2 x PCI slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™
  • Storage
    - 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
  • Connector
    - 1 x IR header
    - 1 x Print Port header
    - 1 x COM Port header
    - 1 x Chassis Intrusion header
    - 1 x TPM header
    - 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
    - 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
    - 1 x Power Fan connector (3-pin)
    - 1 x 24 pin ATX power connector
    - 1 x 8 pin 12V power connector
    - 1 x Front panel audio connector
    - 1 x SPDIF Out connector
    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
    - 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

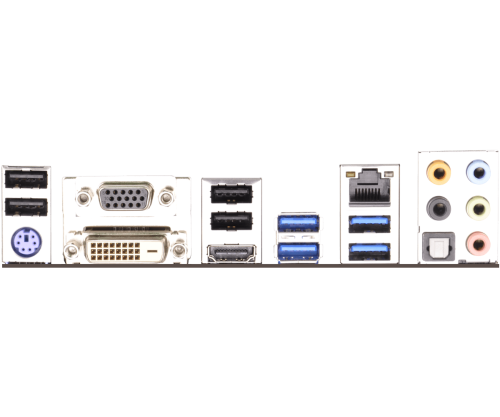

  • Rear Panel I/O
    I/O Panel
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 4 x USB 2.0 Ports
    - 4 x USB 3.1 Gen1 Ports
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Unique Feature
    - ASRock APP Shop
    - ASRock A-Tuning
    - ASRock Instant Flash
    - ASRock APP Charger
    - ASRock XFast USB
    - ASRock XFast LAN
    - ASRock XFast RAM
    - ASRock Crashless BIOS
    - ASRock OMG (Online Management Guard)
    - ASRock Internet Flash
    - ASRock System Browser
    - ASRock UEFI Tech Service
    - ASRock Dehumidifier
    - ASRock Easy RAID Installer
    - ASRock Easy Driver Installer
    - ASRock Interactive UEFI
    - ASRock Fast Boot
    - ASRock Restart to UEFI
    - ASRock On/Off Play Technology
    - ASRock USB Key
    - ASRock FAN-Tastic Tuning
    - Hybrid Booster:
    - ASRock U-COP
    - Boot Failure Guard (B.F.G.)
    - Good Night LED
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
  • Hardware Monitor
    - CPU, Chassis temperature sensing
    - CPU, Chassis, Power Fan Tachometer
    - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    - CPU, Chassis Fan multi-speed control
    - CASE OPEN detection
    - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    - Micro ATX Form Factor
    - All Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP Ready (ErP/EuP ready power supply is required)
