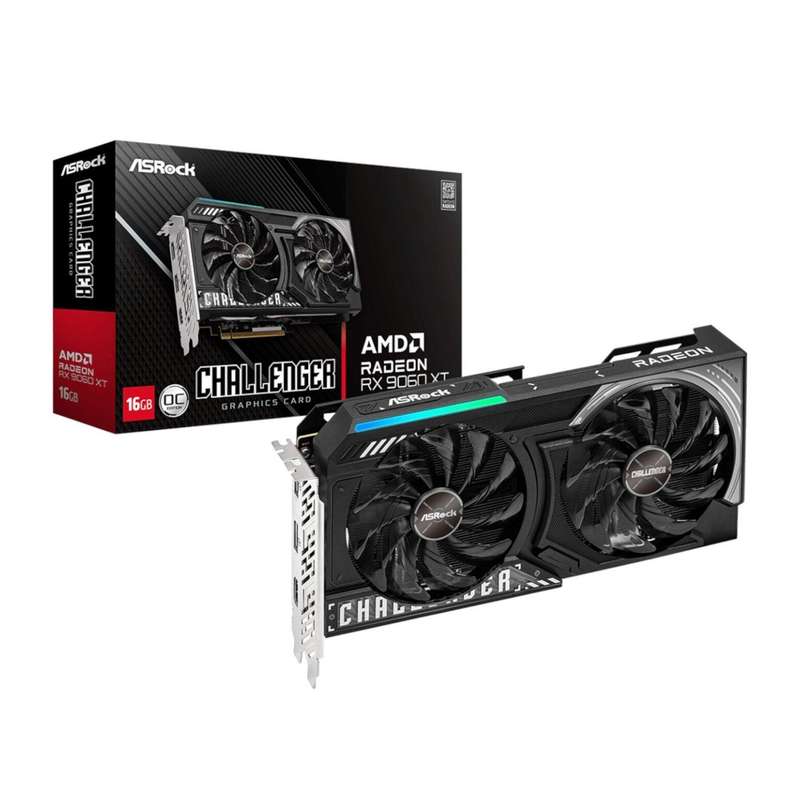

ASRock Radeon RX 9060 XT Challenger 16GB OC Graphics Card (RDNA 4, PCIe 5.0)
FEATURES
Powered by AMD RDNA 4 architecture with DirectX® 12 Ultimate support
Game Clock at 2700MHz, Boost Clock up to 3290MHz
2,048 Stream Processors and 32 Compute Units with 3rd Gen Ray Accelerators
16GB GDDR6 memory with 128-bit interface at 20Gbps
Dual fan cooling with ultra-fit heatpipes and 0dB Silent Cooling mode
Metal backplate with RGB LED indicator and manual LED On/Off switch
PCIe 5.0 x16 interface for ultra-fast throughput
AMD FidelityFX Super Resolution 4 and Smart Access Memory support
Enhanced Media Engine for high-quality streaming and encoding
Seamless pairing with AMD Ryzen 9000 Series processors and AM5 motherboards
SPECIFICATIONS
GPU & Architecture
GPU Model: AMD Radeon RX 9060 XT
Architecture: AMD RDNA 4
Compute Units: 32 (3rd Gen Ray Tracing, 2nd Gen AI Accelerators)
Stream Processors: 2,048
API Support: DirectX® 12 Ultimate, OpenGL 4.6
Interface: PCIe 5.0 x16
Max Digital Resolution: 7680 x 4320 (8K)
Clock Speeds & Memory
Game Clock: 2700MHz
Boost Clock: Up to 3290MHz
Memory Type: 16GB GDDR6
Memory Interface: 128-bit
Memory Clock: 20Gbps
Display Outputs
Ports: 1 x HDMI 2.1b, 2 x DisplayPort 2.1a
Multi-View Support: Up to 3 displays
HDCP Support: Yes
Cooling & Thermals
Cooling System: Dual Fan with Striped Axial Design
Features:
0dB Silent Cooling
Ultra-fit Heatpipes
High-Density Metal Welding
Nano Thermal Paste
Premium Thermal Pads
Precise Screw Torque Mounting
Design & Build
Backplate: Metal with RGB Indicator
RGB Control: Manual LED On/Off switch
Dimensions: 24.9 x 13.2 x 4.1 cm
Weight: 645g
Power Requirements
Connector: 1 x 8-pin
Recommended PSU: 550W
Power Design:
Dr.MOS Power Stage (50A)
Premium 90A Power Choke
2oz Copper PCB
High-Density Glass Fabric PCB
Software & Compatibility
Software: AMD Adrenalin Edition
AI-Driven Optimisation
AMD HYPR-RX2 One-Click Tuning
Technologies:
FidelityFX Super Resolution 4
Smart Access Memory
Radiance Display Engine
Optimised For: 1440p Gaming with Ray Tracing
Platform Compatibility: AMD Ryzen 9000 Series CPUs, AM5 Motherboards
WHATS IN THE BOX
ASRock Radeon RX 9060 XT Challenger 16GB OC Graphics Card ×1
Installation Guide ×1
