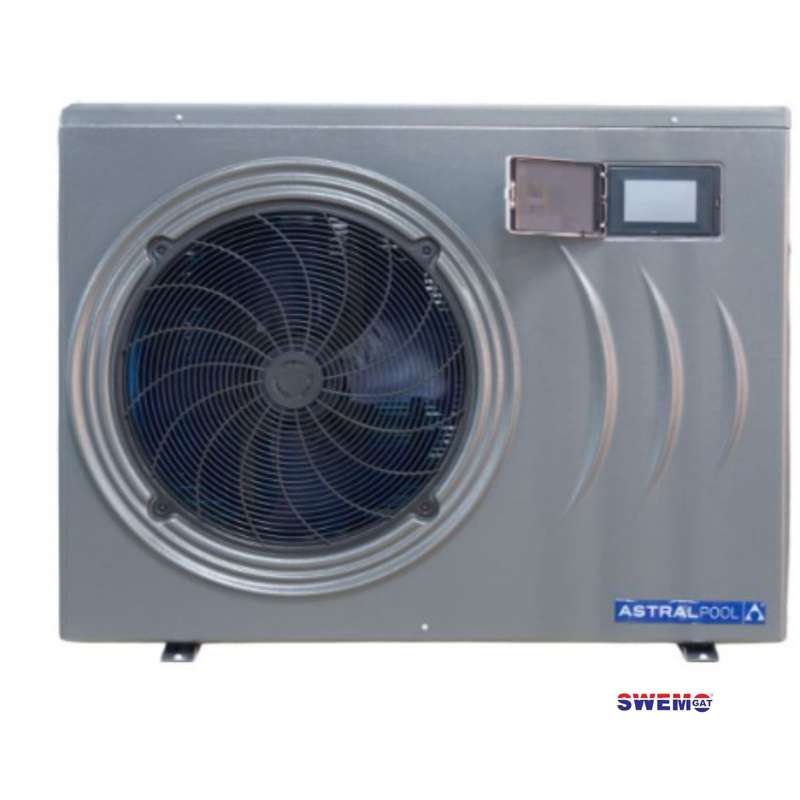

Astral All-Year Inverter Pool Heat pump with Wifi Control via SmartApp

Brand:  Astral

Models:  ECOi HP15; ECOi HP30; BOOSTi HP40; BOOSTi HP60

The following is our guidelines for sizing of the heat pump for use with outdoor in full sun:

• All year use:
• • ECOi HP15 for up to 15 000L;
  • ECOi HP30 for up to 30 000L;
  • BOOSTi HP40 for up to 40 000L;
  • BOOSTi HP60 for up to 60 000L.

• For use during 9 warmest months of the year:
• • ECOi HP15 for up to 25 000L;
  • ECOi HP30 for up to 40 000L;
  • BOOSTi HP40 for up to 55 000L;
  • BOOSTi HP60 for up to 85 000L.

Operating range:

• Ambient temperature: -15 to 43 (Winter to Summer, i.e. 12 Months)

• Water temperature: 9 to 40
• Water Flow Volume (cubic meter per hour): 2.4 (HP15) / 3.7 (HP30) / 7.3 (HP40) / 8.6 (HP60)


Main features of the Swimming Pool Heat Pump:

• Certified A+ energy rating
• R32 Environmentally friendly gas
• Smart LCD touch display for easy
  operation
• COP in excess of 12
• Unique fan blade design further reducing
  typical wind noise
• Can operate at ambient temperatures as
  low as -15°C
• WiFi control via Smartphone App

Installation:

• Always cover the pool with a pool blanket or solar cover when not in use
• Do not place the heat pump in an enclosed area with a limited air volume, where the units discharge air will be re-circulated
• Keep the heat pump away from plant which can block the air inlets. Not allowing the unit enough fresh air will result in reduced performance and efficiency

• It is always best to install heat pumps in full sun for maximum effectiveness
• Refer to installation manual for further guidance
