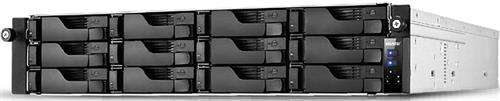

The Asus 2U Rack Mount AS7112RDX NAS offers robust performance with an Intel Xeon E-2224 processor, 8GB ECC UDIMM memory, and extensive connectivity including 12 drive bays and multiple USB ports. Ideal for storage-intensive tasks, it features dual M.2 drive slots and supports both 3.5" and 2.5" SATA HDDs, backed by reliable power delivery from dual 550W PSU units.
Features
Intel Xeon 9th generation Quad-Core CPU
2U chassis design, 12 SATA drive bays
Dual M.2 NVMe SSD ports for fast caching
Supports Virtualization and Docker apps
Specifications
Product code: AS7112RDX
Specifications: Asus 2U Rack Mount 12 bay AS7112RDX NAS
CPU Model: Intel Xeon E-2224
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 3.4GHz up to 4.6GHz
Memory: 8GB DDR4-2666 ECC UDIMM
Memory Module Pre-installed: 8GB (1x 8GB)
Total Memory Slots: 4
Memory Expandable up to 128GB (4x 32GB)
Support mixed capacity
Flash Memory: 8GB USB DOM
Drive Bays: 12
M.2 Drive Slots: 2
Compatible Drive Type
Maximum Drive Bays with Expansion Unit 24
Supports Hot Swappable Drives
Expansion: 4x USB 3.2 Gen 2 (10Gbps) Type-A ; 2x USB 3.2 Gen 2 (10Gbps) Type-C
Network: 4x Gigabit Ethernet (1G/100M)
PCIe Expansion Slots: 2x Gen3x4 slots (x4 link) ; 1x Gen3x8 slots (x8 link)
for optional 10/25/40/50 GbE card and SAS card
System Fan: 3x 60mm
Power Supply Unit / Adapter: 550W x2
Input Power Voltage: 100V to 240V AC
Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
Power Consumption: 92.4W (Operation);
45.5W (Disk Hibernation)
7.55 W (Sleep Mode);
Operation Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -20°C~70°C (-4°F~158°F)
Humidity: 5% to 95% RH
Size: 88(H) x 439(W) x 535(D) mm
Weight: 13 (kg) / 28.6(lb)
