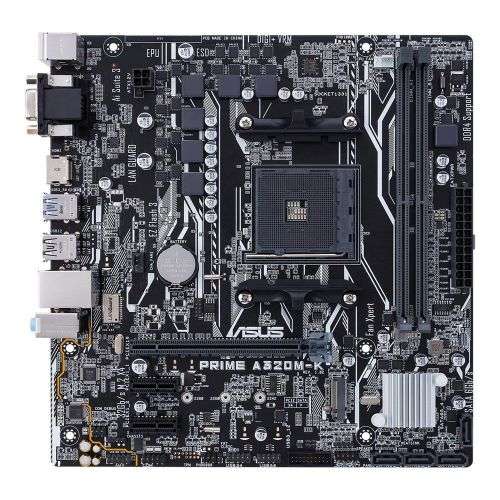

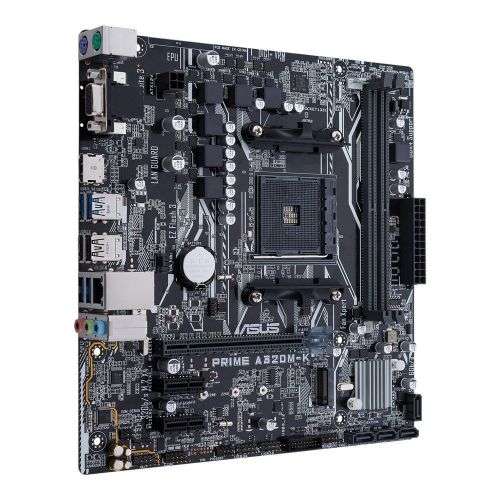

Asus A320 AMD AM4 Motherboard

Asus Prime A320M-K AMD Ryzen AM4 mATX Motherboard

Specifications:

- Form Factor: Matx
- Chipset: AMD A320
- Graphic: Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
- Multi-VGA output support: HDMI/RGB ports
- LAN: Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio: Realtek ALC887 8-Channel High Definition Aud
- Dimensions: 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm )
- Warranty: 36 Months
- Operating System: Windows 10 64-bit

CPU:
- AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors
- Supports CPU up to 8 cores

Memory:
- AMD Ryzen Processors - 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
- AMD 7th Generation A-series/Athlon Processors - 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture

Expansion Slots:
- AMD Ryzen Processors - 1 x PCIe 3.0/2.0 x16 (x16 mode)
- AMD 7th Generation A-series/Athlon Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode)
- AMD A320 chipset - 2 x PCIe 2.0 x1

Storage:
- AMD A320 chipset : 4 x SATA 6Gb/s port(s), grey, Support Raid 0, 1, 10
- AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- AMD 7th Generation A-series/Athlon Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

USB Ports:
- AMD Ryzen/7th Generation A-series/Athlon Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
- AMD A320 chipset: 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
- AMD A320 chipset: 6 x USB 2.0 port(s) (2 at back panel,, 4 at mid-board)

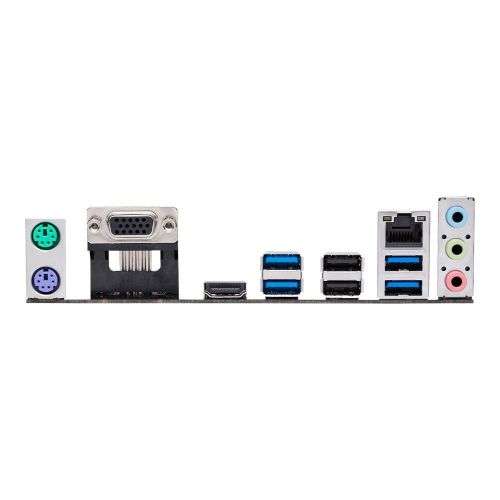

Back I/O Ports:
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.1 Gen 1 (ue)
- 2 x USB 2.0
- 3 x Audio jack(s)

Internal I/O Ports:
- 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x COM port(s) connector(s)
- 4 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x Chassis Fan connector(s) (1 x 4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x Clear CMOS jumper(s)
- 1 x Speaker connector
