Model

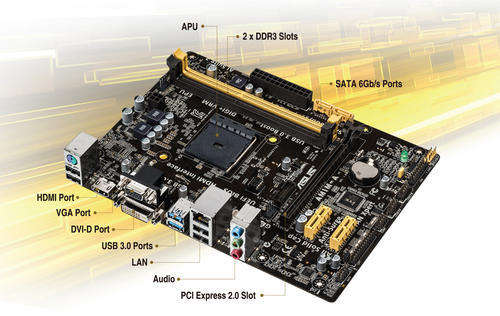

BrandASUSModelAM1M-A
Supported CPU
CPU Socket TypeAM1CPU TypeAthlon Series / Sempron Series
Memory
Number of Memory Slots2×240pinMemory StandardDDR3 1866(OC)/1600/1333Maximum Memory Supported32GB
Expansion Slots
PCI Express 2.0 x161 (x4)PCI Express x12
Storage Devices
SATA 6Gb/s2 x SATA 6Gb/s
Onboard Video
Onboard Video ChipsetNone
Onboard Audio
Audio ChipsetALC887-VDAudio Channels8 Channels
Onboard LAN
LAN ChipsetRealtek 8111GRMax LAN Speed10/100/1000Mbps
Rear Panel Ports
PS/21 x PS/2 keyboard/mouse portVideo Ports1 x DVI
1 x D-SubHDMI1 x HDMIUSB 3.02 x USB 3.0USB 1.1/2.04 x USB 2.0Audio Ports3 Ports
Internal I/O Connectors
Onboard USB4 x USB 2.0Other Connectors1 x TPM header
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
Physical Spec
Form FactorMicro ATXDimensions (W x L)8.9" x 6.7"Power Pin24 Pin
Features
FeaturesASUS 5X Protection :
- ASUS DIGI+ VRM - 1 + 1 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
Packaging

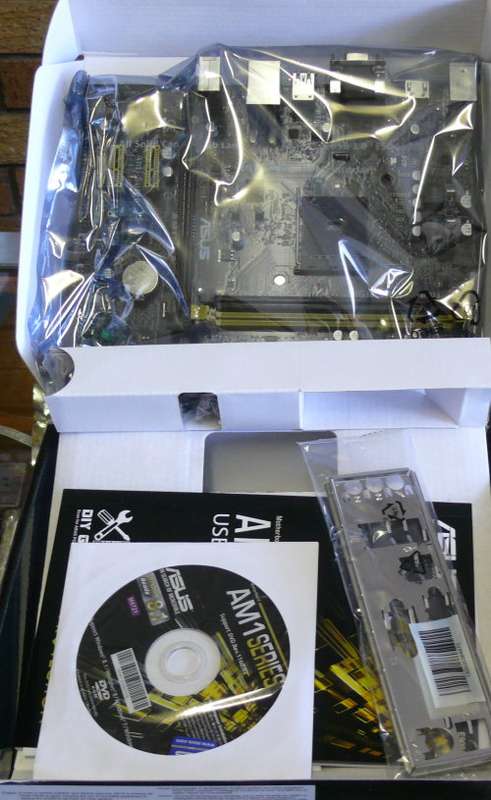

Package ContentsASUS AM1M-A Motherboard
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
