Tested : working

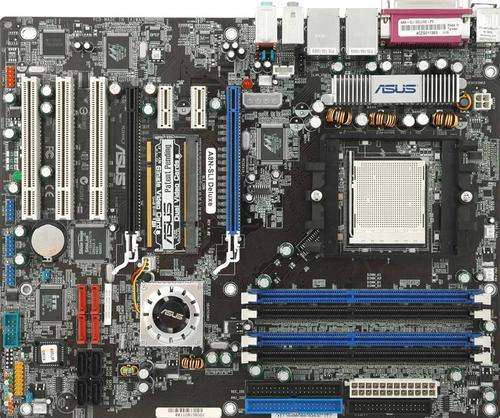

Motherboard and back plate only.
| Product MPN | |
| MPN | A8N-E |
| Key Features | |
| Form Factor | ATX |
| Compatibility | PC |
| Chipset | NVIDIA nForce4 Ultra |
| Compatible Processors | AMD Athlon 64 |
| Front Side Bus Speed | 1000 MHz |
| Video Interface | PCI Express x16 |
| Storage Controller Type(s) | DMA/ATA-133 (Ultra) x 2, Serial ATA x 4 |
| Technical Features | |
| Integrated Input/Output Ports | USB 2.0 x 7 • Serial Port x 1 • RJ45 Lan Port x 1 • PS/2 Mouse x 1 • PS/2 Keyboard x 1 • Parallel Port (ECP/EPP/SPP) x 1 • Game/MIDI Connector x 1 • Floppy Port x 1 |
| Expansion Slots | PCI Express x16 x 1 • PCI Express x4 x 1 • PCI x 3 • PCI Express x1 x 2 |
| RAID Support | RAID 0 • RAID 1 • RAID 0+1 • JBOD Support • SATA RAID 0 • SATA RAID 1 • SATA RAID 0+1 |
| Processor | |
| Socket Type | Socket 939 |
| Max supported CPUs qty | 1 |
| Memory | |
| Memory Type | DDR SDRAM |
| Number of Memory Slots | 4 x 184 Pin DIMMs |
| Supported RAM speeds | 400 MHz • 333 MHz • 266 MHz |
| Max Supported RAM | 4 GB |
| Audio / Video | |
| Audio Output | SPDIF Out • 7.1 Channels • Line Out • Coaxial Out • Optical Out |
| Integrated Audio | Realtec ALC850 |
| Audio Input | Microphone Jack • 1 x Line In |
| Communication | |
| Networking Type | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Other Features | |
| Other Features | Chassis intrusion detection • Dual Channel Memory Architecture |
| Fans | 5 x 3-pin fan headers |
| Chassis Type | Desktop |
| Package Qty | 1 |
| Dimensions | |
| Depth | 9.6 in. |
| Width | 12 in. |
